Home / 20A Duplex Receptacle 125VAC 5-20R GY

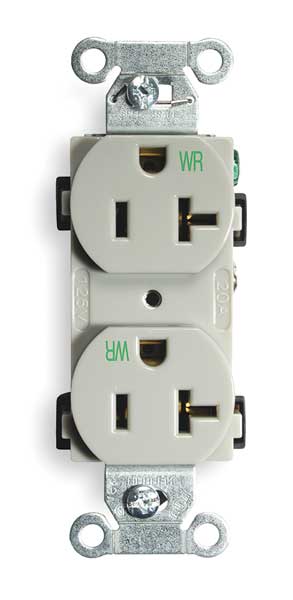

20A Duplex Receptacle 125VAC 5-20R GY

20A Duplex Receptacle 125VAC 5-20R GY

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Weather Resistant, Standards CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498, Voltage Rating 125V AC

    graingerSKU: 2HEA9, mscSKU: , zoro_no: G0405885, mongo_id: 65bbe8e222d7a989a9920d4b

Web Price
$9.99 / each
Qty

Product Details

Standard Protection
Standard Protection
No
20A
20
20
20 A
Commercial
Stainless Steel
Nylon
UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Gray
Gray
Straight
Brass
No
No Cover
Certified for current interrupting at full rated current
20 A
Grounding, Smooth
Gray
Withstands 2,000V minimum
Withstands 2,000V minimum
2.7 in
1.3 in
Traditional
UL 94 V-2
Non-Flanged
No
Federal Specification
Grounded
1
1 hp
Gray
Nylon
1 hp
Grounding Staple, Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
Receptacle
Weather Resistant
Commercial, Industrial
Nylon
167 Degrees F
10 AWG
-40 Degrees F
12 AWG
3.3 in
Flush
Steel-Zinc Plated
.040 (1) Steel (Galvanized)
Flush
Flush
5-20
1
5-20R
5-20R
5-20R
1
2
2 Pole / 3 Wire
3
Maximum continuous 75°C; minimum -40°C (w/o impact)
Brown, Ivory, White, Office White, Almond, Light Almond, Gray, Black
Duplex
Standard Duplex
3.3 in
Single
Yes
2 Pole, 3-Wire Grounding
.030 (.8) Brass
No
Weather Resistant - Weather Resistant - 20 A
20A, 125V
Specification Grade Commercial Series, Weather Resistant
Duplex
Duplex
Weather Resistant
No
NEMA
CSA Certified C22.2, Federal Specification W-C-596, NEMA WD-6, UL 498
Duplex Receptacles
No
No
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current
#12-#10 AWG copper stranded or solid conductor only
Terminals identified in accordance with UL 498 and CSA
Nylon
Duplex
V-2
125VAC
125V AC
125V AC
Yes
Yes
1.06 in
Screw Terminals
Screw Terminals
Back, Side
Back and Side
