Home / 20A Duplex Receptacle 125VAC 5-20R WH

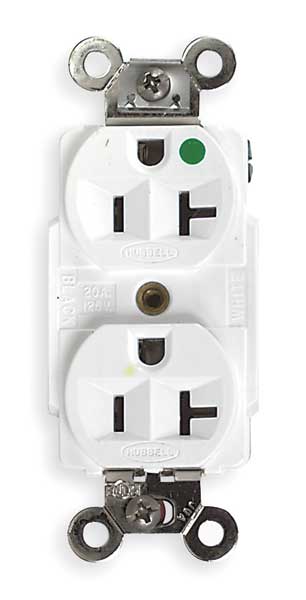

20A Duplex Receptacle 125VAC 5-20R WH

20A Duplex Receptacle 125VAC 5-20R WH

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color White, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC

    graingerSKU: 3D291, mscSKU: , zoro_no: G2672896, mongo_id: 65bbea6522d7a989a99b04a9

Web Price
$47.74 / each
Qty

Product Details

Standard Protection
20 A
20 A
20
20 A
Extra Heavy Duty Hospital Grade
Heavy Use Hospital Grade
Hubbell Wiring Device-Kellems
10
White
White
Straight
Back and Side Wired Screw Terminals
No
United States
20 A
Finder Groove, Grounding
Withstands 2,000V minimum
3.28 in x 1.65 in x 1.19 in
Standard Sized Product
1.63 in
Non-Flanged
Indoor
No
Hospital Grade Fed. Spec.
Grounded
1
Thermoplastic
1 hp
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
IP20
Receptacle
Standard Resistance
3.28 in
Impact Modified PBT/Reinforced PET
Screw Mounting
1
10 AWG
-40 Degrees C
12 AWG
3.28 in
Flush
Flush
Flush
5-20
1
5-20R
5-20R
5-20R
1
2-Pole
3-Wire
Hubbell Wiring Device-Kellems
Maximum continuous 75°C and minimum -40°C without Impact
Duplex
Standard Duplex
1
Single Phase
Yes
No
Duplex
Hospital Grade
No
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Finder Groove Face
Duplex Receptacles
No
No
No
Receptacle
V-0
125VAC
125V AC
125 V
125 V
2500 W
No
No
1.65 in
Screw Terminals
Screw Terminals
#12 AWG to #10 AWG
Back, Side
Back and Side
