Home / 20A Twist-Lock Connector 4P 5W 277/480VAC L22-20R BK/WT

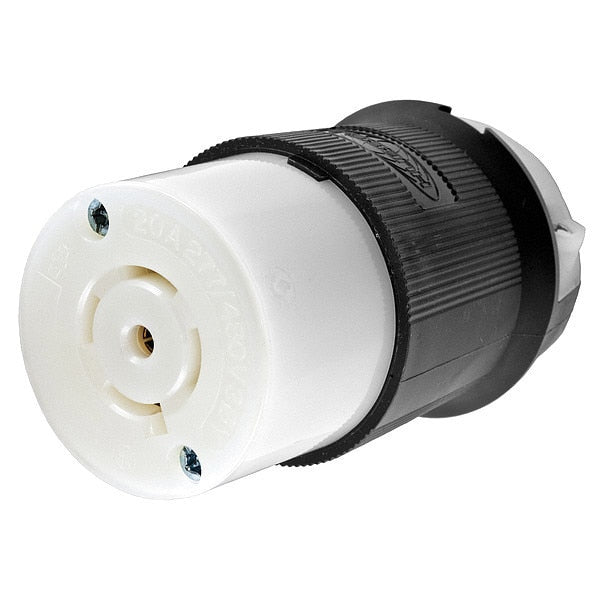

20A Twist-Lock Connector 4P 5W 277/480VAC L22-20R BK/WT

20A Twist-Lock Connector 4P 5W 277/480VAC L22-20R BK/WT

  • Hubbell
  • Locking Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, IP Rating IP20, NEMA Receptacle Configuration L22-20R, Number of Poles 4, Number of Wires 4, Phase Three, Resistance Properties Impact Resistant, Shrouded No, Voltage Rating 277/480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, For Maximum Cable Diameter 1.15 in, For Minimum Cable Diameter 0.35 in

    graingerSKU: 6C545, mscSKU: 54034913, zoro_no: G3289711, mongo_id: 65bbe7ee22d7a989a98cab45

Web Price
$106.74 / each
Qty

Product Details

20
20
No
Heavy Duty Industrial
Natural White Nylon
C
0.350 - 1.150 in
Black/White
Black/White
Straight
Brass
0.350 in to 1.150 in
No
United States
20 A
Indoor Dry Unless Protected By Additional Means
Indoor
1.15 in
0.35 in
Industrial/Commercial
Industrial
Non-Grounded
3.86 in
10 hp
Black, White
Nylon
10.0
IP20
Locking Connector
2.33 in
Industrial
Nylon
75 Degrees C
8 AWG
No
-40 Degrees C
L22-20
L22-20R
L22-20R
4
4
Hubbell Wiring Device-Kellems
2.33 in
2.33 in
1
Three
No
No
Impact Resistant
No
Non-Shrouded
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
HB
277/480VAC
277/480V AC
Screw Terminals
#16 AWG to #8 AWG
Standard
