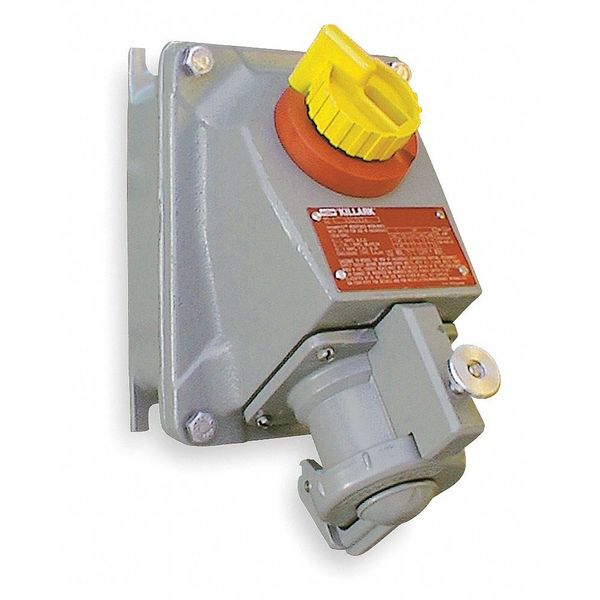

3W 4P 30A Hazardous Pin & Sleeve Receptacle 600VAC

SKU
Brand Hubbell
Categories
Description Mechanical Interlock Device, Circuit Breaker Amp Rating Not Applicable, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2, Locking Handle Yes, NEMA Enclosure Rating 3, 4, 4X, 7BCD, 9FG, Number of Poles 3, Number of Wires 4, Voltage Rating 600V AC, Disconnect Switch Yes, Enclosure Lock Type Padlockable
graingerSKU: 2NVY5, mscSKU: , zoro_no: G0285923, mongo_id: 65bbe90822d7a989a992f1f2

Web Price

$2,789.99 / each

Qty

Product Details

Ambient Temp. Range -20ÃÂ°C to 40 ÃÂ°C;(T5) -20ÃÂ°C to 40 ÃÂ°C;(T6) -20ÃÂ°C to 40 ÃÂ°C

Amperage Rating 30 A

Amps 30 A

Circuit Breaker No

Circuit Breaker Amp Rating Not Applicable

Circuit Breaker Type Not Applicable

Color Battleship Gray

Country of Origin (subject to change) United States

Current Rating 30 A

Disconnect Switch Yes

Each - Width 10.750 in

Electrical Connection Type Pin and Sleeve

Enclosure Lock Type Padlockable

Finish Epoxy Polyester

Fuse Protection Non-Fused

Fuse Type Not Applicable

Fused / Nonfused Nonfused

Grounding Grounded

Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Hazardous Rating(s) Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2

Horsepower Rating 1/3 hp

Housing Color Gray

Housing Material Copper-Free Aluminum

Housing Material Finish Epoxy Coated; Polyester Finish

Housing Material Type Metallic

HP_ 20 hp

Hub 1

Hub Diameter 1 in

Hub Pattern Feed-Thru

Hub Size 1 in

Hub Type Feed Through

Includes (2) 1 x 3/4 Reducers and (1) 3/4 Close-Up Plug

Includes Mounting Hardware Yes

Locking Handle Yes

Material Copper-Free Aluminum

Maximum Wire Size 10 AWG

NEMA Enclosure Rating 3, 4, 4X, 7BCD, 9FG

NEMA Rating 3, 4, 4X, 7(B, C, D), 9(F, G)

Number of Poles 3

Number of Poles & Wires 3 Pole / 4 Wire

Number of Wires 4

Overall Depth 9.75 in

Overall Height 10.5 in

Overall Width 5.75 in

Package Quantity 1

Phase Three

Receptacle Type Mechanically Interlocked

Resistance Properties Corrosion Resistant

Reverse Service No

Screws Stainless Steel

Series VSQ

Standards Class I, Div. 1 & 2, Groups B,C,D / Class I, Zones 1 & 2, Groups IIB+H2, IIA / Class II, Div. 1 & 2, Groups F,G / Class III / NEMA 3, 7 (B,C,D), 9 (F,G) / UL (E91049 & E53660) CSA (LR14667)

Style 3 Pole, 4-Wire

Type Hazardous Location

Use With 5HJ60 (VP3485)

Viewing Window No

Voltage 600V AC

Voltage Rating 600V AC

Width 10.750 in
