Home / 50A Flanged Locking Inlet 3P 4W 600VAC/250VDC

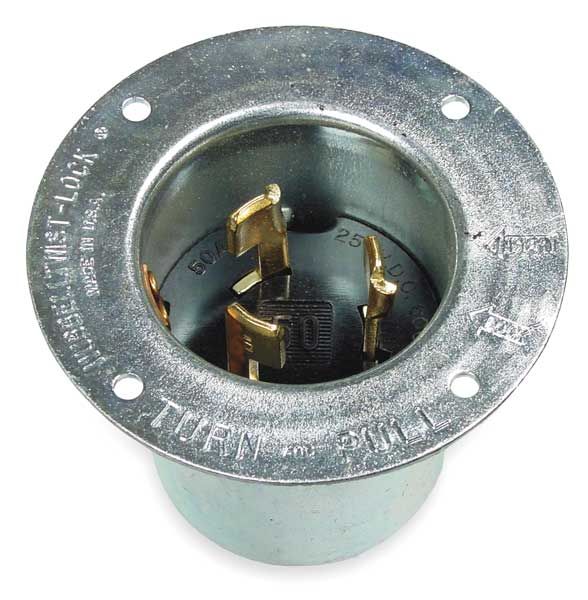

50A Flanged Locking Inlet 3P 4W 600VAC/250VDC

50A Flanged Locking Inlet 3P 4W 600VAC/250VDC

  • Hubbell
  • Flanged Locking Inlet, Current Rating 50 A, Flange Material Steel, Housing Color Silver, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4X, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Moisture Resistant, Heat Resistant, Voltage Rating 250V DC/600V AC, Wiring Style Standard, Face Diameter 2.17 in, Flange Diameter 3.5 in, Flange Type Flanged, Grounding Grounded, Housing Material Steel, Includes Mounting Hardware Yes

    graingerSKU: 3D735, mscSKU: , zoro_no: G0412867, mongo_id: 65bbe7cb3aaddbd5a90b825d

Web Price
$217.69 / each
Qty

Product Details

50
Brass
Gray
United States
50 A
2.17 in
UL 94 V0
3.5 in
Steel
Flanged
Dry
Indoor
General Use
Grounded
Silver
Steel
Zinc Plated
Mounting Screws
Yes
IP20
Twist-lock
Industrial
Zinc-Plated Steel
75 Degrees C
4 AWG
-40 Degrees C
8 AWG
Flush
Flush Mount
Non-NEMA
12, 4X
Non-NEMA
12, 4X
4
3
4
Maximum continuous 75A Deg C; minimum –40A Deg C (w/o impact)
2.63 in
1
Three
Moisture Resistant, Heat Resistant
No
Non-Shrouded
With Stainless Steel Plate
CSA C22.2 No. 42, UL 498
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
V-0
600V AC/250V DC
250V DC/600V AC
0.85
Screw Terminals
#10 AWG - #6 AWG solid or stranded copper wire only
Standard
