Home / 50A Flanged Twist-Lock Inlet 3P 4W 480VAC BK

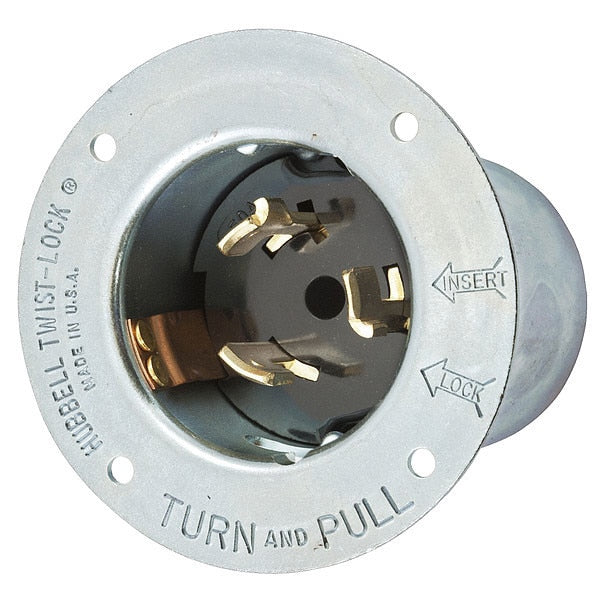

50A Flanged Twist-Lock Inlet 3P 4W 480VAC BK

50A Flanged Twist-Lock Inlet 3P 4W 480VAC BK

  • Hubbell
  • Flanged Locking Inlet, Current Rating 50 A, Housing Color Silver, IP Rating IP20, Mount Type Flush, NEMA Enclosure Rating 12, 4, 4X, NEMA Plug Configuration Non-NEMA, Number of Blades 4, Number of Poles 3, Phase Three, Resistance Properties Heat Resistant, Voltage Rating 480V AC, Wiring Style Standard, Flange Type Flanged, Grounding Grounded, Housing Material Steel, Zinc Plated, Includes Mounting Hardware Yes, Maximum Wire Size 6 AWG, Minimum Wire Size 10 AWG

    graingerSKU: 4D206, mscSKU: 60839495, zoro_no: G2960851, mongo_id: 65bbe7ee9a749db822766ce4

Web Price
$159.99 / each
Qty

Product Details

50
Brass
Gray
50 A
2.62 in
3.5 in
UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
Steel Weldment
Flanged
Indoor
Industrial
Grounded
Silver
Steel, Zinc Plated
Yes
IP20
Twist-lock
Industrial
Zinc-Plated Steel
75 Degrees C
50 A
6 AWG
-40 Degrees C
10 AWG
Flush
Flush Mount
Non-NEMA
12, 4, 4X
Non-NEMA
12, 4, 4X
4
3
4
Maximum continuous 75A Deg C; minimum –40A Deg C (w/o impact)
Three
Heat Resistant
No
Non-Shrouded
With Locking Cover
CSA Certified C22.2, UL 498
Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
V-0
480V AC
480V AC
0.8
3.50 in
Screw Terminals
#6AWG
Standard
