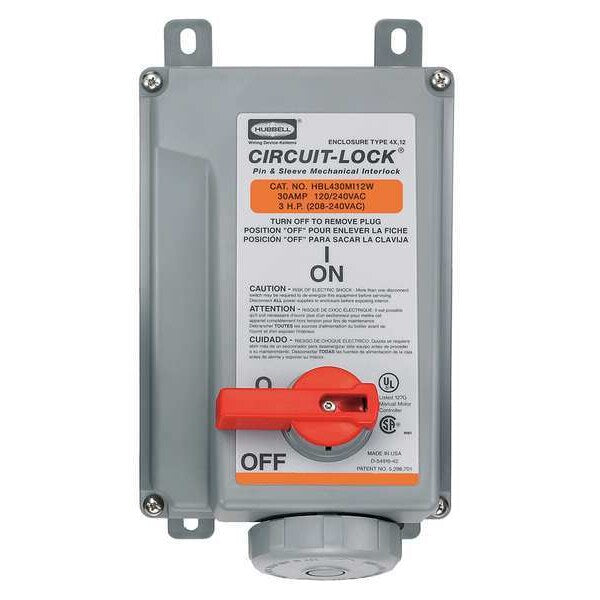

Mechanical Interlock, 120/240VAC, 30A

SKU
Brand Hubbell
Categories
Description Mechanical Interlock Device, Circuit Breaker Amp Rating 30 A, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Locking Handle Yes, NEMA Enclosure Rating Not Rated, Number of Poles 3, Number of Wires 4, Voltage Rating 120/240V AC, Compatible Plug Manufacturer Part Number 3D149, Grounding Grounded, Horsepower Rating 3 hp, Housing Material Thermoplastic, Maximum Wire Size 8 AWG, Phase Single, Resistance Properties Watertight
graingerSKU: 21XL21, mscSKU: , zoro_no: G2997237, mongo_id: 65bbe6ec3aaddbd5a906221f

Web Price

$1,695.94 / each

Qty

Product Details

Accepts Plug Number 3D149

Amperage 30A

Amps 30 A

Assembly Screws Stainless Steel (300 series)

Certification UL Listed, CSA Certified

Certifications UL Listed, CSA Certified.

Circuit Breaker No

Circuit Breaker Amp Rating 30 A

Circuit Breaker Type Not Applicable

Color orange

Compatible Plug Manufacturer Part Number 3D149

Conduit Hub Zinc, Watertight

Current Interrupting Certified for current interrupting at full rated current.

Current Rating 30 A

Dielectric Withstand Voltage Withstands 3,000V AC Min.

Electrical Connection Type Pin and Sleeve

Enclosure Hinge Pins Nickel Plated Brass

Enclosure Inserts Brass

Endurance Mechanical: 10,000 cycles, Electrical: 6,000 cycles.

Flammability UL94-5VA and V-0 classification.

For Location Indoor, Outdoor

Fuse Protection Non-Fused

Fuse Type Not Applicable

Fused / Nonfused Nonfused

Gaskets Neoprene

Grounding Grounded

Handle Valox

Hinge Spring Stainless Steel (300 series)

Horsepower Rating 3 hp

Housing Color Orange

Housing Material Thermoplastic

Housing Material Type Non-Metallic

HP_ 3 hp

Hub Yes

Impact Resistance In accordance with UL746C

Includes All Mounting Hardware

Includes Mounting Hardware Yes

Ingress Protection IP67 Suitability

IP Rating IP67

Locking Handle Yes

Material Thermoplastic

Material of Construction Valox

Max Working Voltage 600V AC RMS

Maximum Operating Temperature 75 Degrees C

Maximum Wire Size 8 AWG

Mechanical Interlock Device Standard IEC

Mechanical Interlock Items Complete Unit

Minimum Operating Temperature -40 Degrees C

Minimum Wire Size 12 AWG

Moisture Resistance Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).

NEMA Enclosure Rating Not Rated

Number of Poles 3

Number of Wires 4

Operating Temperatures Maximum Continuous: 75ÃÂ° C; Minimum Continuous: -40ÃÂ° C w/o impact.

Overall Height 10.12 in

Overall Width 7.75 in

Phase Single

Poles and Wires 3 Pole, 4 Wire

Receptacle Type IEC

Resistance Properties Watertight

Reverse Service No

Service Style Standard

Shaft VALOX

Shaft Seal Neoprene

Short Circuit Withstand Suitable for use on a circuit capable of delivering not more than 10,000 RMS symmetrical amperes at the voltage rating of the receptacle.

Standards UL Listed

Terminal Accommodations #4 To #12 AWG copper wire only

Terminal Identification Terminals identified in accordance with North American and International conventions.

Type Pin And Sleeve Unfused

UL 94 Flammability Rating 5VA, V-0

Use With 3D149

UV Resistance All materials are UV Stabilized.

Viewing Window No

Voltage 120/240V AC

Voltage Rating 120/240V AC
