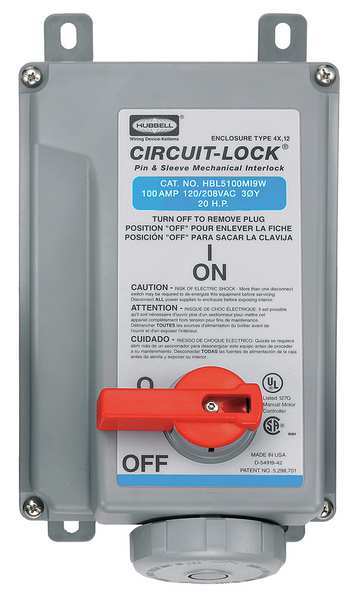

Mechanical Interlock, 250VAC, 100A

Mechanical Interlock, 250VAC, 100A

  • Hubbell
  • Mechanical Interlock Device, Circuit Breaker Amp Rating 100 A, Circuit Breaker Type Not Applicable, Current Rating 100 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Locking Handle Yes, NEMA Enclosure Rating Not Rated, Number of Poles 4, Number of Wires 5, Voltage Rating 120/208V AC, Compatible Plug Manufacturer Part Number 5Z929, Grounding Grounded, Horsepower Rating 20 hp, Housing Material Thermoplastic, Maximum Wire Size 1/0 AWG, Phase Three, Resistance Properties Watertight

    graingerSKU: 21XL24, mscSKU: 73122020, zoro_no: G6399583, mongo_id: 65bbea1022d7a989a99938fd

Web Price
$2,772.56 / each

Product Details

5Z929
100A
100 A
Stainless Steel (300 series)
VALOX
UL Listed, CSA Certified
UL Listed, CSA Certified.
No
100 A
Not Applicable
blue
5Z929
Zinc, Watertight
Certified for current interrupting at full rated current.
100 A
Withstands 3,000V AC
Pin and Sleeve
Nickel Plated Brass
Brass
Mechanical: 10,000 cycles, Electrical: 6,000 cycles.
UL94-5VA and V-0 classification.
Indoor, Outdoor
Non-Fused
Not Applicable
Nonfused
Neoprene
Grounded
Valox
Stainless Steel (300 series)
20 hp
Blue
Thermoplastic
Non-Metallic
20 hp
Yes
In accordance with UL746C
All Mounting Hardware
Yes
IP67 Suitability
IP67
Yes
Thermoplastic
Valox
600V AC RMS
75 Degrees C
1/0 AWG
IEC
Complete Unit
-40 Degrees C
3 AWG
Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).
Not Rated
4
5
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact.
11.87 in
7.75 in
Three
4 Pole, 5 Wire
IEC
Watertight
No
Standard
VALOX
Neoprene
UL Listed
#2 To #10 AWG copper wire only
Terminals identified in accordance with North American and International conventions.
Pin And Sleeve Unfused
5VA, V-0
5Z929
All materials are UV Stabilized.
No
250V AC
120/208V AC
