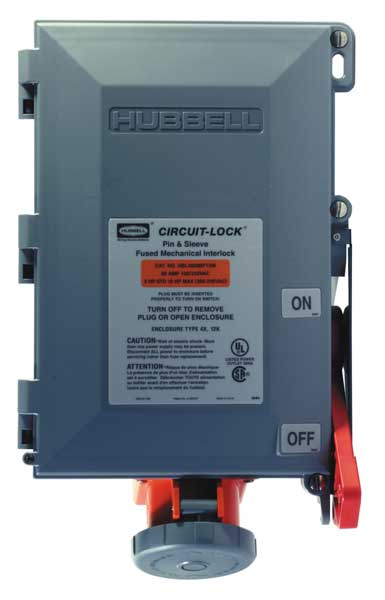

Mechanical Interlock

SKU
Brand Hubbell
Categories
Description Mechanical Interlock Device, Circuit Breaker Amp Rating 60 A, Circuit Breaker Type Not Applicable, Current Rating 60 A, Fuse Protection Fused, Fuse Type Class J, NEMA Enclosure Rating Not Rated, Number of Poles 3, Number of Wires 4, Voltage Rating 120/240V AC, Grounding Grounded, Housing Material Thermoplastic, Maximum Wire Size 2 AWG, Phase Single, Resistance Properties Watertight, Standards CSA Certified, cULus, Viewing Window No, Reverse Service No
graingerSKU: 3D795, mscSKU: , zoro_no: G2584937, mongo_id: 65bbe7cb3aaddbd5a90b829e

Web Price

$3,199.50 / each

Qty

Product Details

Amperage 60A

Amps 60 A

Assembly Screws Stainless Steel (300 series)

Base VALOX

Certification UL Listed, CSA Certified

Certifications UL Listed, CSA Certified.

Circuit Breaker No

Circuit Breaker Amp Rating 60 A

Circuit Breaker Type Not Applicable

Color orange

Conduit Hub Zinc, Watertight: 1 1/4 NPT

Contact Material Brass

Country of Origin (subject to change) United States

Current Interrupting Certified for current interrupting at full rated current.

Current Rating 60 A

Dielectric Withstand Voltage Withstands 3,000V AC

Electrical Connection Type Pin and Sleeve

Enclosure Hinge Pins Nickel Plated Brass

Enclosure Inserts Brass

Endurance Mechanical: 10,000 cycles.

Flammability UL94-5VA and V-0 classification.

Fuse Protection Fused

Fuse Type Class J

Fuse Types UL Listed Class J, CSA Certified HRCI-J

Fused / Nonfused Fused

Gaskets Neoprene

Grounding Grounded

Handle Valox

Hinge Spring Stainless Steel (300 series)

Horsepower Rating 705

Housing Color Orange

Housing Material Thermoplastic

Housing Material Type Non-Metallic

Impact Resistance In accordance with UL746C

Includes Mounting Hardware Yes

Ingress Protection IP67 Suitability

IP Rating IP66

Mating Plug HBL460P12W

Max Working Voltage 600V AC RMS

Maximum Operating Temperature 75 Degrees C

Maximum Wire Size 2 AWG

Mechanical Interlock Device Standard IEC

Mechanical Interlock Items Complete Unit

Minimum Operating Temperature -40 Degrees C

Minimum Wire Size 8 AWG

Moisture Resistance Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).

Mounting Screws Stainless Steel (300 Series)

NEMA Enclosure Rating Not Rated

Number of Poles 3

Number of Wires 4

Operating Temperatures Maximum Continuous: 75ÃÂ° C; Minimum Continuous: -40ÃÂ° C w/o impact.

Overall Height 15.36 in

Overall Width 10.18 in

Package Quantity 1

Phase Single

Poles and Wires 3 Pole, 4 Wire

Receptacle Type Pin and Sleeve

Resistance Properties Watertight

Reverse Service No

Service Style Standard

Shaft Brass

Shaft Seal Neoprene

Short Circuit Withstand Suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes at the voltage rating of the receptacle.

Standards CSA Certified, cULus

Terminal Accommodations #2 To #10 AWG copper wire only

Terminal Identification Terminals identified in accordance with UL, CSA and International conventions.

UL 94 Flammability Rating 5VA, V-0

UV Resistance All materials are UV Stabilized.

Viewing Window No

Voltage 125/250V AC

Voltage Rating 120/240V AC
