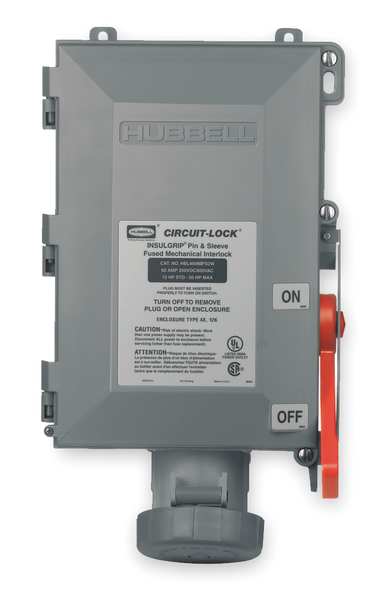

Pin And Sleeve, Interlock, 30A, UnFused

SKU
Brand Hubbell
Categories
Description Mechanical Interlock Device, Circuit Breaker Amp Rating 30 A, Circuit Breaker Type Not Applicable, Current Rating 30 A, Fuse Protection Non-Fused, Fuse Type Not Applicable, Locking Handle Yes, NEMA Enclosure Rating Not Rated, Number of Poles 3, Number of Wires 4, Voltage Rating 600V AC/250V DC, Compatible Plug Manufacturer Part Number 5HJ23, Grounding Grounded, Horsepower Rating 20 hp, Housing Material Thermoplastic, Hub Diameter 1 in, Maximum Wire Size 8 AWG, Phase Single, Three
graingerSKU: 1TJZ9, mscSKU: , zoro_no: G2858134, mongo_id: 65bbe70e3aaddbd5a907072a

Web Price

$1,751.63 / each

Qty

Product Details

Accepts Plug Number 5HJ23

Amperage 30A

Amps 30 A

Assembly Screws Stainless Steel (300 series)

Base VALOX

Certification UL Listed, CSA Certified

Certifications UL Listed, CSA Certified.

Circuit Breaker No

Circuit Breaker Amp Rating 30 A

Circuit Breaker Type Not Applicable

Color gray

Compatible Plug Manufacturer Part Number 5HJ23

Conduit Hub Zinc, Watertight

Contact Material Brass

Country of Origin (subject to change) United States

Current Interrupting Certified for current interrupting at full rated current.

Current Rating 30 A

Dielectric Withstand Voltage Withstands 3,000V AC

Electrical Connection Type Pin and Sleeve

Enclosure Hinge Pins Nickel Plated Brass

Enclosure Inserts Brass

Endurance Mechanical: 10,000 cycles

Flammability UL94-5VA and V-0 classification.

Fuse Protection Non-Fused

Fuse Type Not Applicable

Fuse Types UL Listed Class J, CSA Certified HRCI-J

Fused / Nonfused Nonfused

Gaskets Neoprene

Grounding Grounded

Handle Valox

Hinge Spring Stainless Steel (300 series)

Horsepower Rating 20 hp

Housing Material Thermoplastic

Housing Material Type Non-Metallic

HP_ 20 hp

Hub 1 in

Hub Diameter 1 in

Impact Resistance In accordance with UL746C

Includes Mounting Feet

Includes Mounting Hardware Yes

Ingress Protection IP66 Suitability

IP Rating IP66

Locking Handle Yes

Max Working Voltage 600V AC RMS

Maximum Operating Temperature 75 Degrees C

Maximum Wire Size 8 AWG

Mechanical Interlock Device Standard Insulgrip

Mechanical Interlock Items Complete Unit

Minimum Operating Temperature -40 Degrees C

Minimum Wire Size 12 AWG

Moisture Resistance Outdoor: 4X (Watertight, Washdown) Indoor: Type 12 (Dusttight, Falling Dirt and Non-Corrosive Liquids).

NEMA Enclosure Rating Not Rated

Number of Poles 3

Number of Wires 4

Operating Temperatures Maximum Continuous: 60ÃÂ° C; Minimum Continuous: -40ÃÂ° C w/o impact.

Overall Height 15.36 in

Overall Width 10.18 in

Package Quantity 1

Phase Single, Three

Poles and Wires 3 Pole, 4 Wire

Resistance Properties Watertight

Reverse Service No

Service Style Standard

Shaft VALOX

Shaft Seal Neoprene

Short Circuit Withstand Suitable for use on a circuit capable of delivering not more than 100,000 RMS symmetrical amperes at the voltage rating of the receptacle.

Standards cULus

Terminal Accommodations #4 To #12 AWG copper wire only

Terminal Identification Terminals identified in accordance with North American and International conventions.

Type Pin And Sleeve, Insulgrip, Unfused

UL 94 Flammability Rating 5VA, V-0

Use With 5HJ23

UV Resistance All materials are UV Stabilized.

Viewing Window No

Voltage 600V AC/250V DC

Voltage Rating 600V AC/250V DC
