Home / Pin and Sleeve Plug, 3P, 4W, 100A, 600VAC

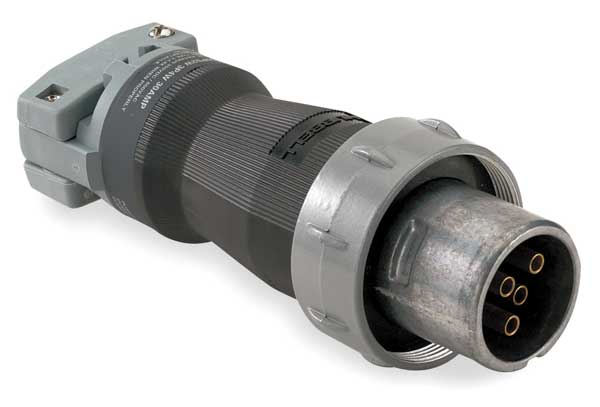

Pin and Sleeve Plug, 3P, 4W, 100A, 600VAC

Pin and Sleeve Plug, 3P, 4W, 100A, 600VAC

  • Hubbell
  • Type 4X Pin and Sleeve Plug, Current Rating 100 A, Housing Color Black, Gray, IP Rating Not Rated, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V DC, 600V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.94 in, For Minimum Cable Diameter 0.925 in, Grounding Grounded, Grounding Style Style 2, Housing Material Polybutylene Terephthalate, Maximum Wire Size 2 AWG, Minimum Wire Size 4 AWG

    graingerSKU: 5HJ17, mscSKU: , zoro_no: G1562601, mongo_id: 65bbe7ee22d7a989a98cab57

Web Price
$914.63 / each
Qty

Product Details

100
100
Metallic with Nylon Shroud
Valox 357 Housing and Aluminum Shroud
Valox 357 Housing and Aluminum Shroud
No Cap or Cover
Gray
Gray
Insulgrip
Straight
100 A
All-Brass Sleeve Contacts Provide Reliable Electrical Contact, Catalog Number and Rating Visible While in Use, Locking Ring Provides UL Type 4X Watertight, Dust-Tight Seal
1.94 in
0.925 in
Grounded
Style 2
Black, Gray
Non-Metallic
Standard
Not Rated
Watertight Pin and Sleeve Plug
Composite
600V
75 Degrees C
2 AWG
-40 Degrees C
4 AWG
Stainless Steel (300 Series)
4X
3
4
8 in
10.9 in
Three
3
CSA Certifications, UL 1682, UL Listed
UL 1682
No
Impact Resistant, Moisture Resistant, Watertight
No
UL 1686 Class 1 Insulgrip®
Yes
CSA Certified C22.2 No. 159, CSA Certified Type 4X, UL 1010, UL 1682, UL 50, UL Listed
No
Watertight Plug
V-0
600VAC/250VDC
600V AC/250V DC
250V DC, 600V AC
Screw Terminals
