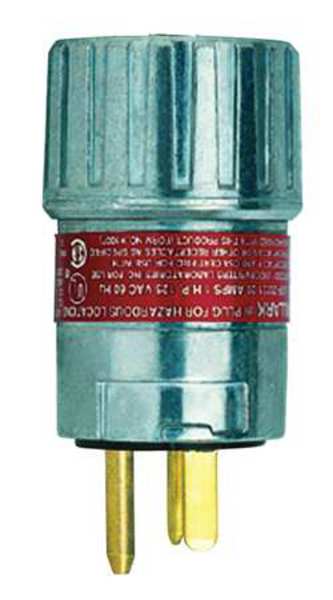

Plug, 20A, 2P, 3W, UL E91049/E53660, Alu, 125V

SKU
Brand Hubbell
Categories
Description Plug, Connection Orientation Angled, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
graingerSKU: null, mscSKU: null, zoro_no: G4285452, mongo_id: 65bbe5b83aaddbd5a9fe0f11

Web Price

$157.49 / each

Qty

Product Details

Amperage Rating 20 A

Amps 20 A

Application Petroleum refineries, chemical plants, wet/damp areas, corrosive environments, petroleum plants, grain elevators/feed mills, flour and feed mills, and indoor or outdoor locations

Body Length 6.625 in

Color Gray

Compatible with Series UGP

Connection Orientation Angled

Country of Origin (subject to change) China

Current Rating 20 A

Dimensions 6.625 in x 2.375 in x 1.875 in

Each - Width 2.375 in

For Environment Corrosive, Damp, Hazardous Location, Wet

For Location Indoor, Outdoor

Grounding Grounded

Hazardous Location Specification Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2

Hazardous Rating(s) Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2

Height 1.875 in

Horsepower Rating 1 hp

Housing Color Gray

Housing Material Metallic

Housing Material Finish Baked Powder Epoxy Coated

Hz_ 60

IP Rating Not Rated

Length 6.625 in

Material Copper-Free Aluminum

Maximum Wire Size 10 AWG

NEMA Configuration 5-20

NEMA Enclosure Rating 3, 4, 4X

NEMA Plug Configuration 5-20P

NEMA Rating 3, 4, 4X

NEMA Type 5-20P

Number of Blades 3

Number of Poles 2

Number of Wires 3

Overall Length 6.625 in

Package Quantity 1

Phase Single

Polarized No

Receptacle Type Delayed Action

Resistance Properties Corrosion Resistant

Series UGP

Size 6.625 in x 2.375 in x 1.875 in

Special Features ACCEPTOR plugs conform to NEMA configurations and can be used with standard receptacles in non-hazardous areas to maximize equipment utilization. The system's turn to engage feature locks in plug and can be used to prevent accidental disengagement of cr

Standards UL E91049

Type Straight Blade

Voltage 120 V AC

Voltage Rating 125V AC

Width 2.375 in

Wire Connection Type Screw Terminals

Wire Size #10 AWG, #12 AWG, or #14 AWG

Wiring Style Standard
