Home / Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Orange

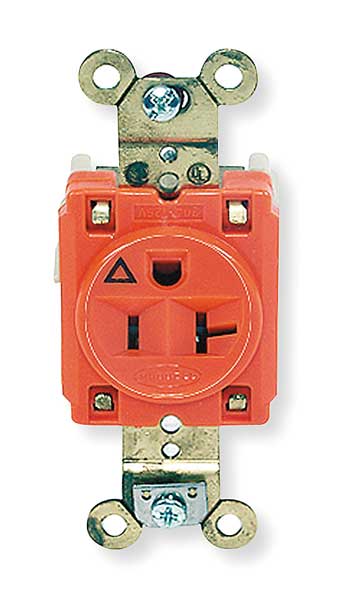

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Orange

Receptacle, 20 A Amps, 125V AC, Flush Mount, Single Outlet, 5-20R, Orange

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Housing Color Orange, Housing Material Nylon (Face), Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC

    graingerSKU: 3D404, mscSKU: , zoro_no: G2110762, mongo_id: 65bbe81a9a749db8227751af

Web Price
$53.69 / each
Qty

Product Details

Isolated Ground
Isolated Grounding
No
20A
20
20
20 A
Industrial
Stainless Steel
Reinforced PET
UL Listed to UL 498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-6 requirements, Certified to CSA, C22.2, No. 42 File 285.
Orange
Orange
Straight
Nickel-Plated Brass
No
United States
No Cover
Certified for current interrupting at full rated current
20 A
Orange
1.94 in
1.63 in
Traditional
Finder Groove
UL 94 V2 or better., Top: UL 94V-2, Base: UL 94V-0
Non-Flanged
Indoor
No
Federal Specification
#8-32 Brass, Multiple Drive (Green)
Isolated Ground
1.19 in
1
1 hp
Orange
Nylon (Face)
1 hp
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
Yes
Isolated Ground Receptacle
Standard Resistance
Commercial, Industrial
Nylon/Reinforced PET
75 Degrees C
10 AWG
-40 Degrees C
14 AWG
3.28 in
Flush
Steel-Zinc Plated
Flush
Flush
5-20
1
5-20R
5-20R
5-20R
5-20R
1
2
2 Pole / 3 Wire
3
Maximum continuous 75°C; minimum -40°C (w/o impact)
Single
Single
1.19 in
1
Single
Yes
2 Pole, 3-Wire Grounding
.032 (.8) Brass
No
20 A
15A, 125V
Heavy Duty Spec Grade
Single
Single
No
Isolated Ground
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186
Single Receptacles
No
No
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
#14-#10 AWG copper stranded or solid conductor only
Terminals identified in accordance with UL 498 and CSA
#8-32 Brass /Ni plated for neutral
Nylon
Single
V-0, V-2
125VAC
125V AC
125V AC
No
No
1.63 in
Screw Terminals
Screw Terminals
Back, Side
Back and Side
