Home / Receptacle, 20 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-20R, Blue

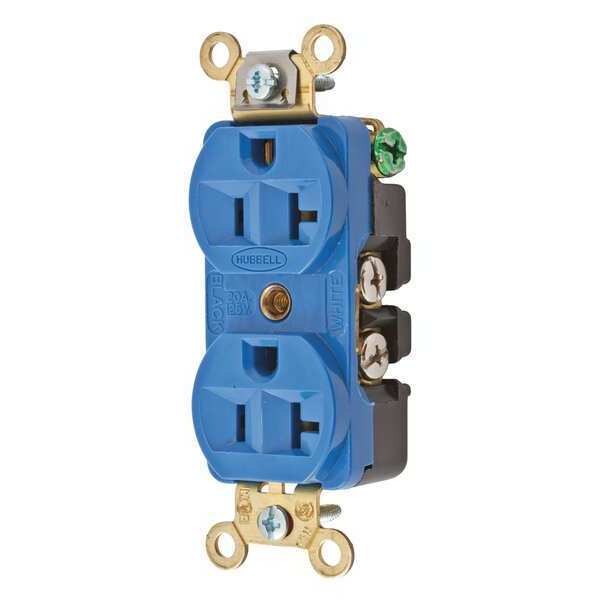

Receptacle, 20 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-20R, Blue

Receptacle, 20 A Amps, 125V AC, Flush Mount, Standard Duplex Outlet, 5-20R, Blue

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Blue, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186, Voltage Rating 125V AC

    graingerSKU: 49YK65, mscSKU: , zoro_no: G4440637, mongo_id: 65bbe8e222d7a989a9920d2e

Web Price
$29.45 / each

Product Details

Standard Protection
Standard Protection
No
20A
20
20
20 A
Industrial
Reinforced PET
-UL Listed to UL498 File E2186, Guide RTRT Fed Spec WC596G, Meets WD-1 Heavy Duty and WD-6 requirements, Certified to CSA, C22.2, No. 42 file 285.
Blue
Blue
Straight
Brass
No
United States
No Cover
Certified for current interrupting at full rated current
20 A
Finder Groove
Blue
Withstands 2,000V minimum
2.73 in
1.33 in
Traditional
Finder Groove
UL 94 V-0, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Non-Flanged
Indoor
No
Federal Specification
#8-32 Brass, Multiple Drive (Green)
Grounded
1.05 in
1
1 hp
Blue
Nylon
1 hp
Grounding Clip, Mounting Hardware, Wall Plate or Weatherproof Cover
Yes
IP20
Receptacle
Standard Resistance
Industrial
Nylon
75 Degrees C
10 AWG
-40 Degrees C
12 AWG
3.28 in
Flush
Steel-Zinc Plated
.050 (1.3) Brass
Flush
Flush
5-20
1
5-20R
1
5-20R
5-20R
1
2
2 Pole / 3 Wire
3
Maximum continuous 75°C; minimum -40°C (w/o impact)
Brown, Almond, Black, Blue, Gray, Ivory, Red, White
Duplex
Standard Duplex
1.05 in
1
Single
Yes
.037 (.9) Phosphor Bronze
No
20A, 125V
Compact Spec Grade
Duplex
No
NEMA
CSA Certified C22.2 No. 42 File 285, Federal Specification W-C-596G, NEMA WD-6, UL 498 File E2186
Duplex Receptacles
No
No
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
#12-#10 AWG stranded or solid copper wire only
Terminals identified in accordance with UL 498 and CSA
#8-32 Brass /Ni plated for neutral
Nylon
V-0
125VAC
125V AC
125V AC
No
No
1.33 in
Screw Terminals
Screw Terminals
Back, Side
Back and Side
