Home / Receptacle, 20 A Amps, 250V AC, Flush Mount, Single Outlet, 15-20R, Black

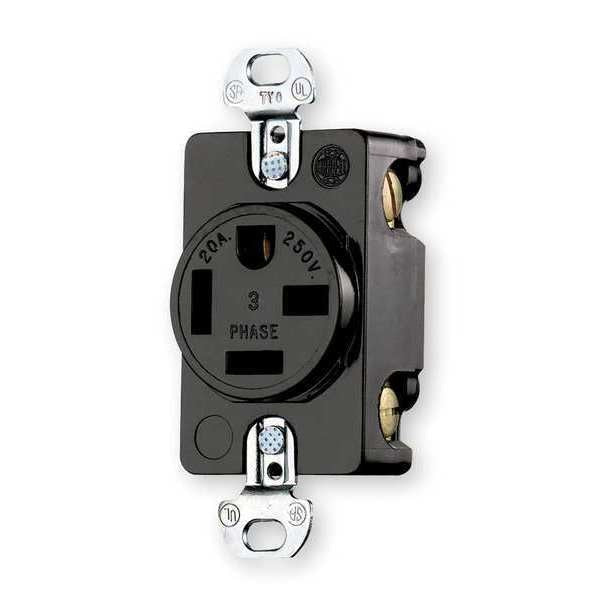

Receptacle, 20 A Amps, 250V AC, Flush Mount, Single Outlet, 15-20R, Black

Receptacle, 20 A Amps, 250V AC, Flush Mount, Single Outlet, 15-20R, Black

  • Hubbell
  • Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 15-20R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Standards CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706, Voltage Rating 250V AC, Wire Connection Type Screw Terminals

    graingerSKU: 5C793, mscSKU: 54034004, zoro_no: G1986275, mongo_id: 65bbe81a9a749db8227751c9

Web Price
$56.99 / each
Qty

Product Details

A
Standard Protection
Standard Protection
No
20A
20
20
20 A
Industrial
Reinforced PET
A
UL Listed, File E2186, Listed to UL Standard 498, Certified to CSA, C22.2, No. 42
Black
Black
Straight
Nickel-Plated Brass
No
No Cover
Certified for current interrupting at full rated current
20 A
Black
Withstands 2,000V minimum
2.4 in
1.5 in
Traditional
Non-Flanged
Indoor
No
Federal Specification
#8-32 Silicon Bronze (Green)
Grounded
1.24 in
3
3 hp
Black
Nylon
3 hp
Mounting Hardware
Yes
IP20
IP20
Receptacle
Standard Resistance
Industrial
Nylon
167 Degrees F
10 AWG
-40 Degrees F
14 AWG
Flush
Steel-Zinc Plated
.062 (1.5) Plated Steel
Flush
Flush
15-20
1
15-20R
15-20R
15-20R
1
3
3 Pole / 4 Wire
4
Maximum continuous 75°C; minimum -40°C (w/o impact)
Single
Single
1.2 in
Three
Yes
3 Pole, 4 Wire Grounding
.037 (.9) Brass - Ni Plated
No
20A, 3ph 250V
Heavy Duty Spec Grade
Single
Single
No
NEMA
CSA C22.2 No. 42 File 280C, NEMA WD-6, UL 498 File E1706
Single Receptacles
No
No
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
#14-#10 AWG copper stranded or solid conductor only
Terminals identified in accordance with UL 498 and CSA
#8-32 Brass /Ni plated for neutral
Nylon
3 Pole, 4 Wire, Grounding
V-2
250VAC
250V AC
250V AC
No
No
1.5 in
Screw Terminals
Screw Terminals
Back, Side
Back and Side
