Home / Receptacle, Duplex, 5-20R, 6-20R, 125/250V

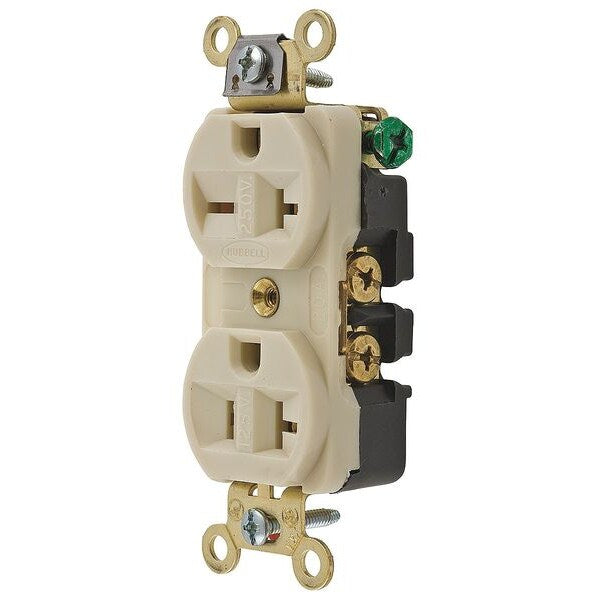

Receptacle, Duplex, 5-20R, 6-20R, 125/250V

Receptacle, Duplex, 5-20R, 6-20R, 125/250V

  • Hubbell
  • Combination Device, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating 1, NEMA Receptacle Configuration 5-20R, 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Standards CSA, C22.2, No. 42 File 285, UL Listed to UL498 File E2186, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals

    graingerSKU: 3D914, mscSKU: , zoro_no: G4465054, mongo_id: 65bbe6643aaddbd5a9028d95

Web Price
$56.49 / each

Product Details

Standard Protection
Standard Protection
No
20 A
20 A
Heavy Duty
Stainless Steel
Reinforced PET
Hubbell Wiring Device-Kellems
10
UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Meets NEMA WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
Ivory
Back and Side
Straight
Back and Side Wired
United States
No Cover
Certified for current interrupting at full rated current
20 A
Duplex Receptacle
Ivory
Withstands 2,000V minimum
Withstands 2,000V minimum
3.28 in x 1.5 in x 0.88 in
Standard Sized Product
Indoor Dry Unless Protected By Additional Means
6-20R
5-20R
2.8 in
Finder Groove
UL 94 V-2 or better, Top: UL 94 V2. Base: UL 94 V0 and UL 94-5 VA.
Non-Flanged
Dry
Indoor
No
Federal Specification
#8-32 Brass, Multiple Drive (Green)
Grounded
0.88 in
2
2 hp
Ivory
Nylon
Yes
Standard Resistance
3.28 in
Industrial
2
167 Degrees F
10 AWG
-40 Degrees F
14 AWG
3.3 in
Flush
Screw Mounting
Steel-Zinc Plated
.050 (1.3) Brass
5-20, 6-20
1
5-20R, 6-20R
5-20R, 6-20R
5-20R, 6-20R
1
2
2
2 Pole / 3 Wire
3
Maximum continuous 75°C and minimum -40°C without Impact
Maximum continuous 75°C; minimum -40°C (w/o impact)
1.1 in
1
Single Phase
Yes
.037 (.9) Brass
20 A
20A, 125V/20A, 250V
Heavy Duty Spec Grade
Duplex
Extra Heavy Duty
No
CSA, C22.2, No. 42 File 285, UL Listed to UL498 File E2186
Finder Groove Face
No
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
#14-#10 AWG copper stranded or solid conductor only
Terminals identified in accordance with UL 498 and CSA
#8-32 Brass, Multiple Drive
Nylon
2 Pole, 3 Wire, Grounding
V-2
783585000000
120/240V AC
125/250 V
5000 W
0.2 lb
1.5 in
Screw Terminals
Screw Terminals
#14 AWG to #10 AWG
Duplex Switch
Back, Side
2 Circuit
