Home / 30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT

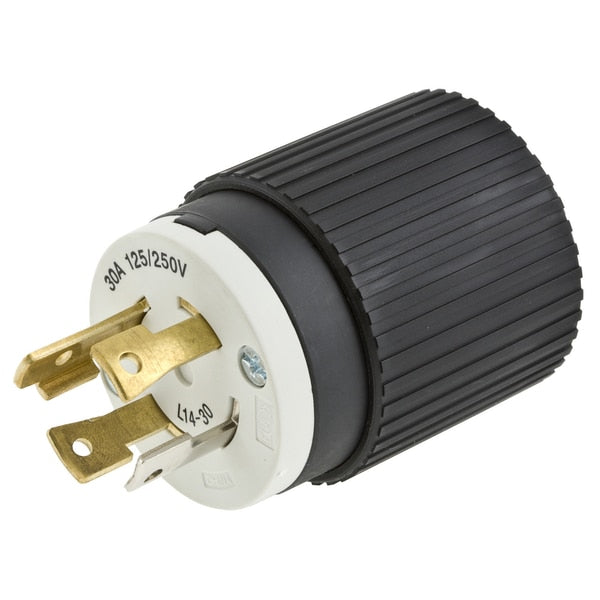

30A Locking Plug 3P 4W 125/250VAC L14-30P BK/WT

SKU
Brand Hubbell Wiring Device-Kellems
Categories
Description Lkg Plg 30A 125/250V
graingerSKU: 24X951, mscSKU: , zoro_no: G3161621, mongo_id: 65bbe8e222d7a989a9920d81

Web Price

$68.17 / each

Qty

Product Details

Body Material Supertough Nylon

Color Black & White

Country of Origin (subject to change) China

Flammability HB or Better per UL 94 or CSA 22.2 No. 17

Item - Plugs and Receptacles Plug

NEMA Configuration L14-30P

Number of Poles 3 Pole, 4 Wire Grounding

Operating Temp. Maximum Continuous 60 deg C, minimum -40 deg c. (w/o impact).

Package Quantity 1

Standards Terminals identified in accordance with UL 498 (Brass, White, Green),UL listed,CSA

Temp. Rise Maximum 30 deg C. Temp. Rise at full rated current after 50 cycles overload at 150% rated current for either AC or DC applications per UL 498

Voltage - Plugs and Receptacles 600V AC, 250V DC; 30A, 125/250V
