Home / Liquid Tight Connector, 1-1/2 in., 90 deg

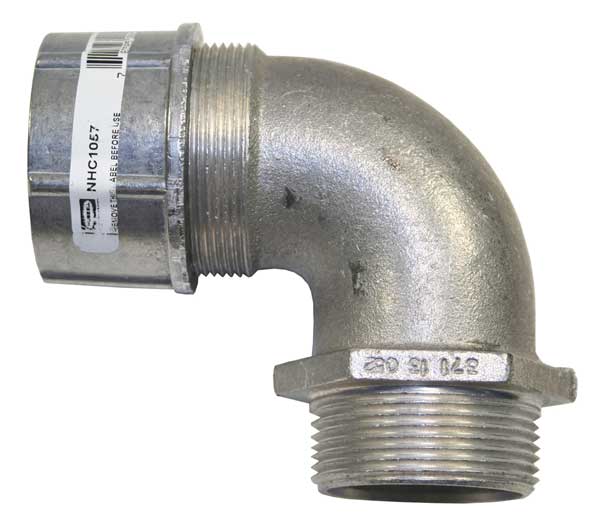

Liquid Tight Connector, 1-1/2 in., 90 deg

SKU
Brand Hubbell Wiring Device-Kellems
Categories
Description Liquid Tight Cord Connector, Cord Dia. Range 1.00 in to 1.13 in, Box Connection 1 1/2 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code No Code, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 3 3/16 in, Insulated No, Standards CSA LR27378, UL E54218(M)
graingerSKU: 5D817, mscSKU: , zoro_no: G2349719, mongo_id: 65bbe8fd22d7a989a992afbb

Web Price

$89.61 / each

Qty

Product Details

Body Color Silver

Body Color - Cord Connector Silver

Body Material Aluminum

Box Connection 1 1/2 in MNPT

Certifications UL Listed in accordance with Standard 514B, CSA Certified, United States Coast Guard Approval, Title 46-Part 111.

Collar Material Aluminum

Color Silver

Compatible Conduit Trade Size 1 1/4 in

Compatible Conduit Type Liquid Tight Cord Connector

Conduit Size 1-1/2

Connection Orientation 90 Degrees

Connector Type 90 Degrees

Cord Connector Body Style 90 Degree Male

Cord Dia. Range 1.00 in to 1.13 in

Dimension A 3.18 (80.8)

Dimension B 4.30 (109.2) Ref.

Dimension E A/C 2.47 (62.7)

Dimension G 2.31 (58.7) Dia.

Environmental Rating Hazardous Locations

For Maximum Cable OD 1.13 in

For Minimum Cable OD 1 in

For Use With Kellems Wire Management

Form Size F5

Gland Color Code No Code

Grommet Color Code No Code

Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2

Hazardous Locations Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).

Hub Size 1 1/2 in MNPT

Insulated No

IP Rating IP66

Item - Cord Connector Liquid Tight Cord Connector

Length 4-5/16

Length - Box to End of Connector 3 3/16 in

Length - External Strain Relief No External Strain Relief

Liquid Tight Yes

Material Aluminum

Material - Cord Connector Aluminum

Material - External Strain Relief No External Strain Relief

Maximum Operating Temperature 225 Degrees F
