Home / Liquid Tight Connector, 1/2in., 90 deg, Red

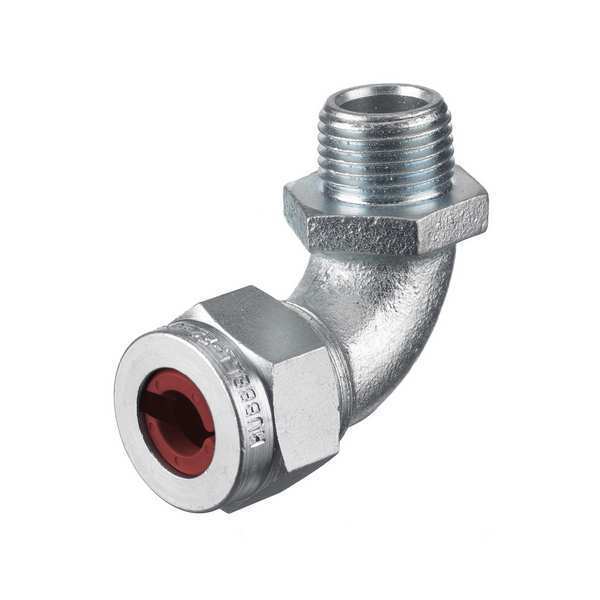

Liquid Tight Connector, 1/2in., 90 deg, Red

SKU
Brand Hubbell Wiring Device-Kellems
Categories
Description Liquid Tight Cord Connector, Cord Dia. Range 0.19 in to 0.25 in, Box Connection 1/2 in MNPT, Material - Cord Connector Zinc Plated Steel, External Strain Relief Material No External Strain Relief, Gland Color Code Red, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector 90 Degrees , Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 5/8 in, Insulated No, Standards CSA LR27378, UL E54218(M)
graingerSKU: 2XYK1, mscSKU: , zoro_no: G1524433, mongo_id: 65bbea5822d7a989a99ac20b

Web Price

$23.74 / each

Qty

Product Details

Body Color Silver

Body Color - Cord Connector Silver

Body Material Steel

Box Connection 1/2 in MNPT

Collar Material Steel

Color Red

Compatible Conduit Trade Size 1/2 in

Compatible Conduit Type Liquid Tight Cord Connector

Conduit Size 1/2

Connection Orientation 90 Degrees

Connector Type 90 Degrees

Cord Connector Body Style 90 Degree Male

Cord Dia. Range 0.19 in to 0.25 in

Dimension A 1.65 (41.9)

Dimension B 2.38 (60.5)

Dimension E A/C 1.29 (32.8)

Dimension G A/F 1.13 (28.6)

Effective Operating Temperature -30ÃÂ°F to +225ÃÂ°F (-34ÃÂ°C to +107ÃÂ°C)

Environmental Rating Hazardous Locations

For Maximum Cable OD 0.25 in

For Minimum Cable OD 0.19 in

For Use With Kellems Wire Management

Form Size F2

Gland Color Code Red

Grommet Color Code Red

Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2

Hazardous Locations Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).

Hub Size 1/2 in MNPT

Insulated No

IP Rating IP66

Item - Cord Connector Liquid Tight Cord Connector

Length 2-3/8

Length - Box to End of Connector 1 5/8 in

Length - External Strain Relief No External Strain Relief

Liquid Tight Yes

Material Steel

Material - Cord Connector Zinc Plated Steel

Material - External Strain Relief No External Strain Relief

Material/Style Zinc Plated Steel
