Home / Liquid Tight Connector, 3/4in., Yellow

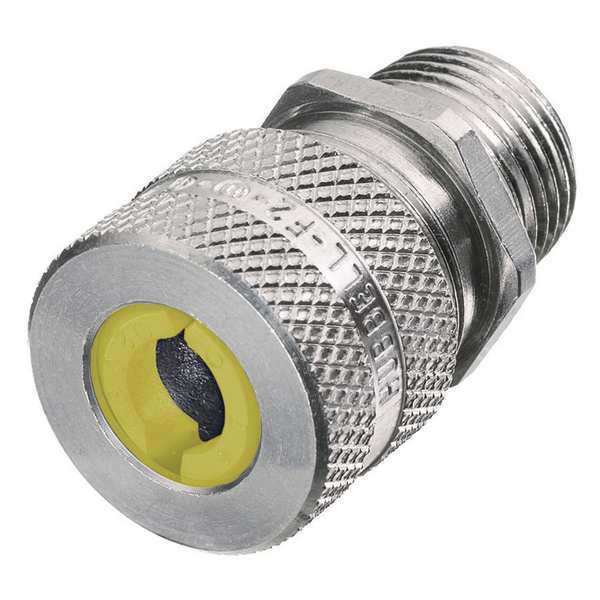

Liquid Tight Connector, 3/4in., Yellow

SKU
Brand Hubbell Wiring Device-Kellems
Categories
Description Liquid Tight Cord Connector, Cord Dia. Range 0.63 in to 0.75 in, Box Connection 3/4 in MNPT, Material - Cord Connector Aluminum, External Strain Relief Material No External Strain Relief, Gland Color Code Yellow, Body Color - Cord Connector Silver, Number of Cords 1, Style - Connector Straight, Strain Relief Type No External Strain Relief, External Strain Relief Length No External Strain Relief, Length - Box to End of Connector 1 1/2 in, Insulated No, Standards CSA LR27378, UL E54218(M)
graingerSKU: 5D735, mscSKU: , zoro_no: G2848316, mongo_id: 65bbe5b03aaddbd5a9fdccb9

Web Price

$16.24 / each

Qty

Product Details

Application Straight Male- Form 3

Body Color Silver

Body Color - Cord Connector Silver

Body Material Aluminum

Box Connection 3/4 in MNPT

Bushing Material Neoprene

Collar Material Aluminum

Color Yellow

Color Code Yellow

Compatible Conduit Trade Size 3/4 in

Compatible Conduit Type Liquid Tight Cord Connector

Conduit Size 3/4

Connection Orientation Straight

Connector Type Straight

Cord Dia. Range 0.63 in to 0.75 in

Dimension D .82 (20.8) Throat Dia.

Dimension E A/C 1.40 (35.6)

Dimension E A/F 1.25 (31.7)

Environmental Rating Hazardous Locations

For Maximum Cable OD 0.75 in

For Minimum Cable OD 0.63 in

For Use With Kellems Wire Management

Form Size F3

Gland Color Code Yellow

Grommet Color Code Yellow

Hazardous Location Rating Class I, Division 2, Class II, Division 1 & 2, Class III, Division 1 & 2

Hazardous Locations Hubbell cord connectors are suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C. Reference 501-4(b), 502-4(a), 502-4(b), 503-3(a), and 503-3(b).

Hub Size 3/4 in MNPT

Insulated No

IP Rating IP66

Item - Cord Connector Liquid Tight Cord Connector

Length 2-3/64

Length - Box to End of Connector 1 1/2 in

Length - External Strain Relief No External Strain Relief

Liquid Tight Yes

Material Aluminum

Material - Cord Connector Aluminum

Material - External Strain Relief No External Strain Relief

Maximum Operating Temperature 225 Degrees F
