Home / Occupancy Sensor Control Unit, 120to277V

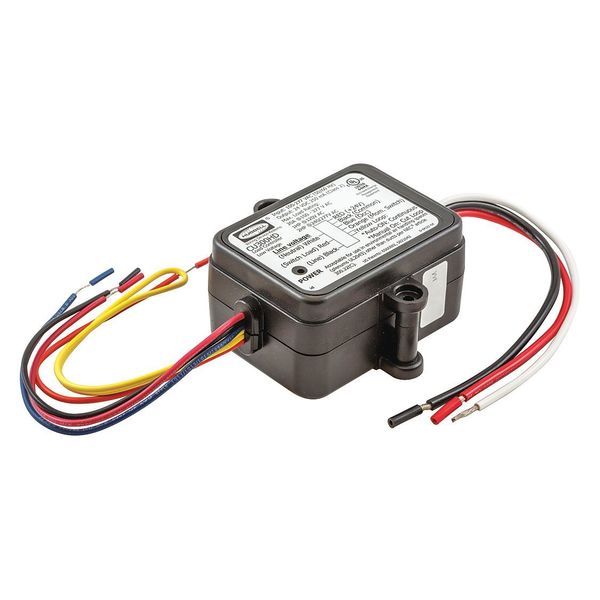

Occupancy Sensor Control Unit, 120to277V

SKU
Brand Hubbell Wiring Device-Kellems
Categories
Description Control Unit, Item - Motion Sensing and Dimming Control Unit, Use With - Motion Sensing and Dimming Up to 6 Hubbell ATD, ATU, ATP, AHP, and AD2240 Series Sensors, Operating Voltage - Motion Sensing and Dimming 120 to 277 V AC, Max. Capacity @ 120VAC 16A (LED), 20A (Fluorescent Ballast, Incandescent), Color - Motion Sensing and Dimming Black, Output Voltage - Motion Sensing and Dimming 24 V DC @ 250mA, Communication Method - Motion Sensing and Dimming Hard Wired
graingerSKU: 29RW74, mscSKU: , zoro_no: G5399825, mongo_id: 65bbe73e3aaddbd5a9083480

Web Price

$172.13 / each

Qty

Product Details

Accessory Type Control Unit

AT Sensor/AAR Capacity 1 to 6 combined

Color Black

Color - Motion Sensing and Dimming Black

Communication Method - Motion Sensing and Dimming Hard Wired

Country of Origin (subject to change) China

Depth 1 3/4 in

Description/Special Features Selectable Auto-On/Auto Off/ Manual On-Auto Off

Device Color Black

Dimensions 4.00L x 3.4W x 1.73H

Flammability UL 94-5VA

For Use With 24VDC Ceiling and Wall Mtd Occ Sensors, DSM Series SW

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Hardware Included

Height 4 in

Housing Flame retardant UL 94-5VA thermoplastic

Includes Controlled Outlet Labels, Mounting Hardware

Item - Motion Sensing and Dimming Control Unit

Lighting Technology Fluorescent, Incandescent, LED

Load Capacity 20A, 100-277V; 1HP @ 120V AC; 2HP @ 240/277V

Low Voltage Switch DSL30W1, DSM30W1

Max. Capacity @ 120VAC 16A (LED), 20A (Fluorescent Ballast, Incandescent)

Motor Loads 1HP @ 120V, 2HP @ 240/277V

Occupancy Sensors ATD2000C, ATD1000C, ATD1600W

Operating Temperatures -40ÃÂ°F (-40ÃÂ°C) to 149ÃÂ°F(65ÃÂ°C). Below 32ÃÂ°F (0ÃÂ°C) must use suitably rated non-metallic enclosure. 0% to 90% humidity, non-condensing.

Operating Voltage - Motion Sensing and Dimming 120 to 277 V AC

Output Voltage - Motion Sensing and Dimming 24 V DC @ 250mA

Package Quantity 1

Permanent Marking Labels CL60

Power Output 24V DC 250mA

Power Supply 100-277V AC, 50/60 Hz

Relay Heavy duty; magnetic latching. Silver alloy contacts. Very low standby power consumption

Standards Ul and cUL Listed

Straight Blade Receptacles 5262W, 5362W, DR15WHI,

Use With - Motion Sensing and Dimming Up to 6 Hubbell ATD, ATU, ATP, AHP, and AD2240 Series Sensors

Voltage 120 to 277VAC

Width 3 1/2 in
