Home / St Lght Dscnnct, Crimp, Dual InLine, Paired

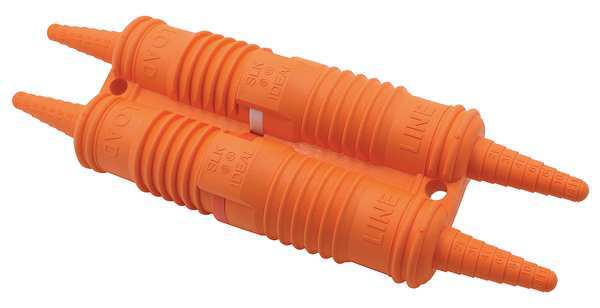

St Lght Dscnnct, Crimp, Dual InLine, Paired

SKU
Brand Ideal
Categories
Description Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Dual In-Line, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 4 AWG, For Maximum Line Wire Size 2 AWG, Load Outputs 2, For Minimum Load Wire Size 4 AWG, For Maximum Load Wire Size 2 AWG, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 1, Secondary Connection Poles 1, Termination Style Crimp, Color Orange, Contact Finish Tin
graingerSKU: 18G591, mscSKU: , zoro_no: G5619363, mongo_id: 65bbe84022d7a989a98e5d38

Web Price

$89.24 / each

Qty

Product Details

Breakaway/Non-Breakaway Breakaway

Color Orange

Compatible with Product Type Street Lights

Compatible with Series SLK

Connection Material Tin-Plated Brass

Connection Type Crimp

Contact Finish Tin

Contact Material Brass

Country of Origin (subject to change) United States

Current 30 A

Design Paired (One Fused/One Non-Fused)

Disconnect Breakaway Breakaway

Disconnect Style Breakaway Disconnect

For Conductor Material Aluminum, Copper

For Line Side Wire Size 2 AWG, 4 AWG

For Load Side Wire Size 2 AWG, 4 AWG

For Maximum Line Wire Size 2 AWG

For Maximum Load Wire Size 2 AWG

For Minimum Line Wire Size 4 AWG

For Minimum Load Wire Size 4 AWG

Insulation Polypropylene, TPE

Insulation Color Orange

Insulation Material Polypropylene, TPE

Length 1,000'

Line Inputs 2

Line Side Wire Size Range 2 AWG, 4 AWG

Load Outputs 2

Load Side Wire Range 4 AWG - 2 AWG

Max. Temp. 105 Degrees C

Max. Voltage 600V AC

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Voltage 600 V

Maximum Wire Gauge 2 AWG

Minimum Wire Gauge 4 AWG

Number of Wires (Line Side) 2 Wire

Number of Wires (Load Side) 2 Wire

Overall Length 8 1/2 in

Package Quantity 1

Primary Connection Poles 1

Primary Connections/Pole 1

Primary Wire Range 6 to 14 AWG

Ratings 30A, 600V, 105ÃÂ°C

Secondary Connection Poles 1

Secondary Connections/Pole 1

Secondary Wire Range 6 to 14 AWG

SLK Type Crimp

SLK Variation Paired

Special Features De-Energizes Roadway Lights, Streetlights, Parking Lot Lights and Other Freestanding Electrical Fixtures in the Event of a Knockdown or When Fixtures Need Maintenance, Helps Protect First Responders, Bystanders and Service Personnel From Potentially Life-Threatening Electrical Shock Hazards

Standards UL 486D, UL Listed

Street Light Kit Type Single-Pole In-Line Paired

Style Dual In-Line

Termination Style Crimp

UL 94 Flammability Rating V-2

UL Standards UL 486D

Wire Range 2-14 AWG (Cu & Al rated)
