Home / St Lght Dscnnct, Crimp, Y-Tap, Non-Fused

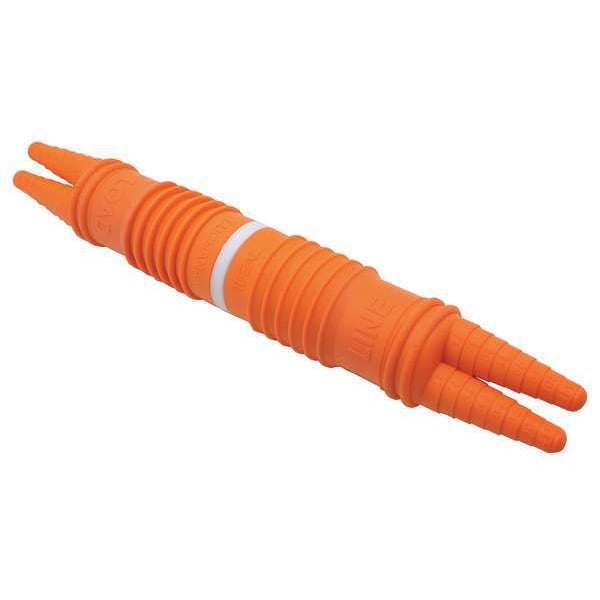

St Lght Dscnnct, Crimp, Y-Tap, Non-Fused

SKU
Brand Ideal
Categories
Description Street Light Disconnect, Current 30 A, Disconnect Breakaway Breakaway, Disconnect Style Y-Tap, For Conductor Material Aluminum, Copper, Line Inputs 2, For Minimum Line Wire Size 14 AWG, For Maximum Line Wire Size 10 AWG, Load Outputs 2, For Minimum Load Wire Size 14 AWG, For Maximum Load Wire Size 10 AWG, Fused No, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Primary Connection Poles 2, Secondary Connection Poles 2, Termination Style Set Screw, Color Orange
graingerSKU: 18G573, mscSKU: , zoro_no: G5818556, mongo_id: 65bbe8479a749db822781e1c

Web Price

$143.74 / each

Qty

Product Details

Breakaway/Non-Breakaway Breakaway

Color Orange

Compatible with Product Type Street Lights

Compatible with Series SLK

Connection Material Tin-Plated Brass

Connection Type Crimp

Contact Finish Tin

Contact Material Brass

Country of Origin (subject to change) United States

Current 30 A

Design Non-Fused

Disconnect Breakaway Breakaway

Disconnect Style Breakaway Disconnect

For Conductor Material Aluminum, Copper

For Line Side Wire Size 10 AWG, 12 AWG, 14 AWG

For Load Side Wire Size 10 AWG, 12 AWG, 14 AWG

For Maximum Line Wire Size 10 AWG

For Maximum Load Wire Size 10 AWG

For Minimum Line Wire Size 14 AWG

For Minimum Load Wire Size 14 AWG

Fuse Type Non-Fused

Fused No

Insulation Polypropylene, TPE

Insulation Color Orange

Insulation Material Polypropylene, TPE

Length 1,000'

Line Inputs 2

Line Side Wire Size Range 10 AWG, 12 AWG, 14 AWG

Load Outputs 2

Load Side Wire Range 14 AWG - 10 AWG

Max. Temp. 105 Degrees C

Max. Voltage 600V AC

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Voltage 600 V

Maximum Wire Gauge 10 AWG

Minimum Wire Gauge 14 AWG

Number of Wires (Line Side) 2 Wire

Number of Wires (Load Side) 2 Wire

Overall Length 8 1/2 in

Package Quantity 1

Primary Connection Poles 2

Primary Connections/Pole 2

Primary Wire Range 10 to 14 AWG

Ratings 30A, 600V, 105ÃÂ°C

Secondary Connection Poles 2

Secondary Connections/Pole 2

Secondary Wire Range 10 to 14 AWG

SLK Type Crimp

SLK Variation Neutral

Special Features De-Energizes Roadway Lights, Streetlights, Parking Lot Lights and Other Freestanding Electrical Fixtures in the Event of a Knockdown or When Fixtures Need Maintenance, Helps Protect First Responders, Bystanders and Service Personnel From Potentially Life-Threatening Electrical Shock Hazards

Standards UL 486D, UL Listed

Street Light Kit Type 2 Wire Line / 2 Wires Load Non-Fused

Style Y-Tap

Termination Style Set Screw

UL 94 Flammability Rating V-2

UL Standards UL 486D

Wire Range 2-14 AWG (Cu & Al rated)
