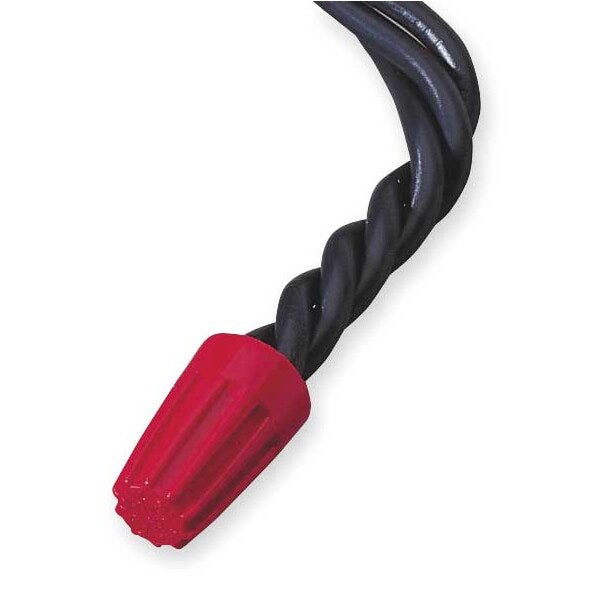

Twist On Wire Connector, 18-10 AWG, PK150

SKU
Brand Ideal
Categories
Description Twist On Wire Connector, Color Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 14 AWG, Maximum Wire Combination (4) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 6 AWG, Minimum Single Wire Size 18 AWG, Overall Height 1.06 in
graingerSKU: 6LU44, mscSKU: 04513404, zoro_no: G2475261, mongo_id: 65bbe6823aaddbd5a90357a7

Web Price

$30.86 / each

Qty

Product Details

Application General Purpose

Color Red

Connector Type 76B

Contact Material Steel

Country of Origin (subject to change) United States

For Conductor Material Copper

For Wire Size 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 8 AWG

Height 1.06 in

High Temperature Application No

Insulation Material Thermoplastic Polyester

Max. Single Wire Size 10 AWG

Max. Temp. 221 Degrees F

Max. Voltage 600V AC

Max. Wire Combination (2) 10 AWG with (2) 12 AWG

Maximum Conductors 6

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Single Wire Size 6 AWG

Maximum Voltage 600 V

Maximum Wire Combination (4) 12 AWG

Maximum Wire Gauge 6 AWG

Min. Single Wire Size 18 AWG

Min. Wire Combination (2) 14 AWG

Minimum Single Wire Size 18 AWG

Minimum Wire Combination (2) 14 AWG

Minimum Wire Gauge 18 AWG

Overall Height 1.06 in

Overall Width 0.59 in

Package Quantity 150

RoHS Compliant Yes

Series 76B

Special Features Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications

Standards CSA Certified, UL Listed

Strip Length 1/2 in

Termination Method Twist-On

Twist-On Style Non-Wing

Twist-On Wire Size Ranges 18 AWG - 6 AWG

UL 94 Flammability Rating V-2

Width 0.66 in

Wire Connector Style Standard

Wire Size Ranges 18 AWG - 6 AWG
