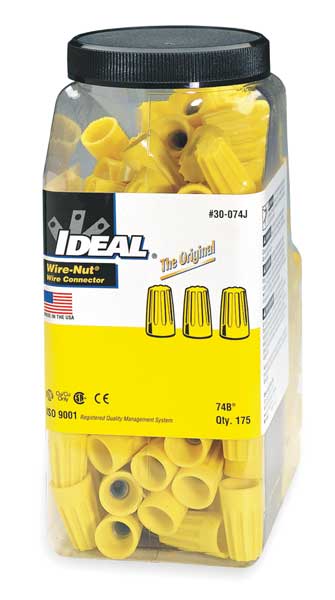

Twist On Wire Connector, 18-12 AWG, PK175

SKU
Brand Ideal
Categories
Description Twist On Wire Connector, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (4) 14 AWG with (1) 18 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CSA Certified, UL Listed, Wire Connector Style Standard, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 12 AWG, Minimum Single Wire Size 18 AWG
graingerSKU: 6LU43, mscSKU: 04513362, zoro_no: G2981842, mongo_id: 65bbe97422d7a989a9958813

Web Price

$22.74 / each

Qty

Product Details

Application General Purpose

Cable Manager Type Cable Holder

Color Yellow

Connector Type 74B

Contact Material Steel

Country of Origin (subject to change) United States

For Conductor Material Copper

For Wire Size 12 AWG, 14 AWG, 16 AWG, 18 AWG

Height 0.95 in

High Temperature Application No

Insulation Material Thermoplastic Polyester

Max. Single Wire Size 12 AWG

Max. Temp. 221 Degrees F

Max. Voltage 600V AC

Max. Wire Combination (4) 14 AWG with (1) 18 AWG

Maximum Conductors 6

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Single Wire Size 12 AWG

Maximum Voltage 600 V

Maximum Wire Combination (4) 14 AWG with (1) 18 AWG

Maximum Wire Gauge 12 AWG

Min. Single Wire Size 18 AWG

Min. Wire Combination (2) 18 AWG

Minimum Single Wire Size 18 AWG

Minimum Wire Combination (2) 18 AWG

Minimum Wire Gauge 18 AWG

Overall Height 0.95 in

Overall Width 0.55 in

Package Quantity 175

Product Color Yellow

Product Name 30-074J Cable Binder

Product Type Cable Tying

RoHS Compliant Yes

Series 74B

Special Features Excellent for Fine Stranded Wire Applications, Fixed, Square-Wire Spring for a Grip That will Last, Positive Grip Shell That is Perfect to Twist-on With Fingers, Refined Range to Handle All Common Applications

Standards CSA Certified, UL Listed

Strip Length 7/16 in

Termination Method Twist-On

Twist-On Style Non-Wing

Twist-On Wire Size Ranges 18 AWG - 12 AWG

UL 94 Flammability Rating V-2

Width 0.55 in

Wire Connector Style Standard

Wire Size Ranges 18 AWG - 12 AWG
