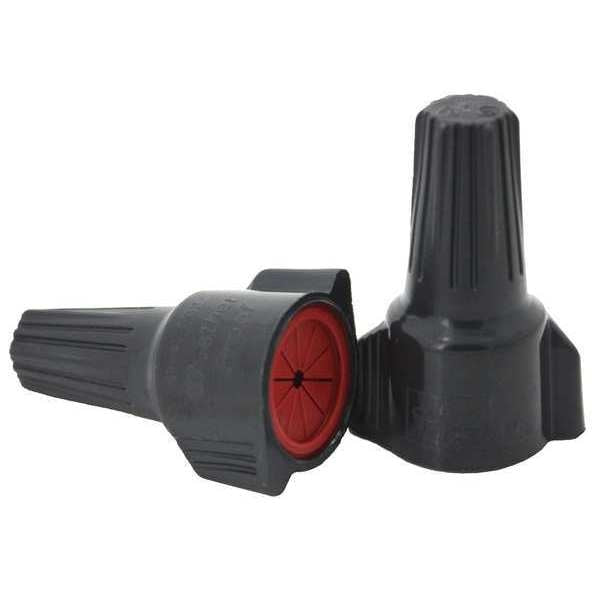

Twist On Wire Connector, 18-8 AWG, PK20

SKU
Brand Ideal
Categories
Description Twist On Wire Connector, Color Gray/Red, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 18 AWG, Maximum Wire Combination (2) 10 AWG with (1) 14 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Fill Material Silicone, Insulation Material Thermoplastic Polyester, Maximum Single Wire Size 8 AWG

Web Price

$35.24 / each

Qty

Product Details

Application Wide Range

Color Gray/Red

Connector Type 62

Contact Material Steel

Country of Origin (subject to change) China

Fill Material Silicone

For Conductor Material Copper

For Wire Size 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 8 AWG

Height 1.34 in

High Temperature Application No

Insulation Material Thermoplastic Polyester

Max. Single Wire Size 8 AWG

Max. Voltage 600V AC

Max. Wire Combination (3) 10 AWG

Maximum Conductors 5

Maximum Operating Temperature 221 Degrees F

Maximum Single Wire Size 8 AWG

Maximum Voltage 600 V

Maximum Wire Combination (2) 10 AWG with (1) 14 AWG

Min. Single Wire Size 18 AWG

Min. Wire Combination (2) 18 AWG

Minimum Single Wire Size 18 AWG

Minimum Wire Combination (3) 18 AWG

Overall Height 1.34 in

Overall Width 0.94 in

Package Quantity 20

Series 62

Special Features Easy to Apply, Pre-Filled Twist-on Wire Connectors, Eliminates the Need for Heat-Shrink or Excessive Taping, Swept Wing Design is Built for Comfort and Efficiency

Standards CE, CSA Certified, UL Listed

Strip Length 1/2 in

Twist-On Wire Size Ranges 18 AWG - 8 AWG

UL 94 Flammability Rating V-2

Width 0.94 in

Wire Connector Style Wing

Wire Size Ranges 18 AWG - 8 AWG
