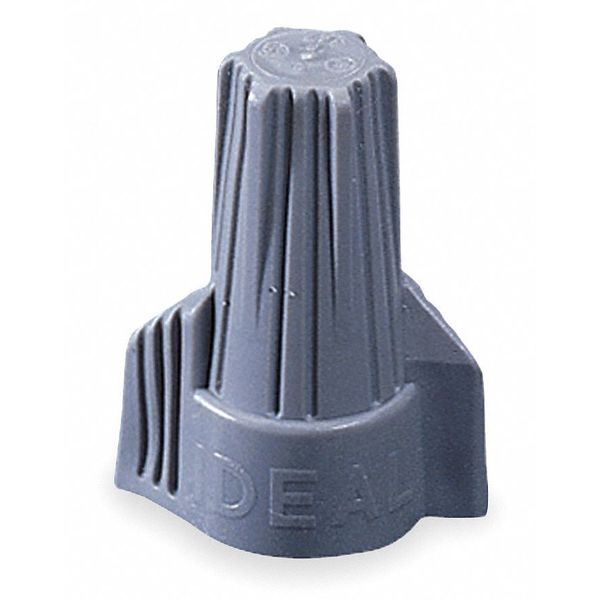

Twist On Wire Connector, 18-8 AWG, PK50

SKU
Brand Ideal
Categories
Description Twist On Wire Connector, Color Gray, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (3) 14 AWG, Maximum Wire Combination (2) 8 AWG with (2) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 6, Standards CE, CSA Certified, UL Listed, Wire Connector Style Wing, Insulation Material Polypropylene, Maximum Single Wire Size 6 AWG, Minimum Single Wire Size 18 AWG, Overall Height 1.3 in
graingerSKU: 6YH57, mscSKU: 54043443, zoro_no: G1202686, mongo_id: 65bbe9bf22d7a989a99754a6

Web Price

$21.99 / each

Qty

Product Details

Application General Purpose

Color Gray

Connector Type 342

Contact Material Steel

Country of Origin (subject to change) United States

For Conductor Material Copper

For Wire Size 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 6 AWG, 8 AWG

Height 1.3 in

High Temperature Application No

Insulation Material Polypropylene

Max. Single Wire Size 8 AWG

Max. Temp. 221 Degrees F

Max. Voltage 600V AC

Max. Wire Combination (2) 10 AWG with (4) 12 AWG Solid

Maximum Conductors 6

Maximum Operating Temperature 221 Degrees F

Maximum Rated Voltage 600V

Maximum Single Wire Size 6 AWG

Maximum Voltage 600 V

Maximum Wire Combination (2) 8 AWG with (2) 12 AWG

Maximum Wire Gauge 6 AWG

Min. Single Wire Size 18 AWG

Min. Wire Combination (3) 14 AWG

Minimum Single Wire Size 18 AWG

Minimum Wire Combination (3) 14 AWG

Minimum Wire Gauge 18 AWG

Overall Height 1.3 in

Overall Width 1 in

Package Quantity 50

Series 342

Special Features Comfortable Swept Wings Offer Extra Leverage and Less Effort on Large Wire Combinations, Durable Copolymer Shell Expands for Smooth, Progressive Tightening That Provides Dependable Connections, Expanding Square-Wire Spring Supports a Wide Range of Common Wiring Configurations, Quick Take-Up on Even the Toughest Combinations

Standards CE, CSA Certified, UL Listed

Termination Method Twist-On

Twist-On Style Wing

Twist-On Wire Size Ranges 18 AWG - 6 AWG

UL 94 Flammability Rating V-2

Width 1.0 in

Wire Connector Style Wing

Wire Size Ranges 18 AWG - 6 AWG
