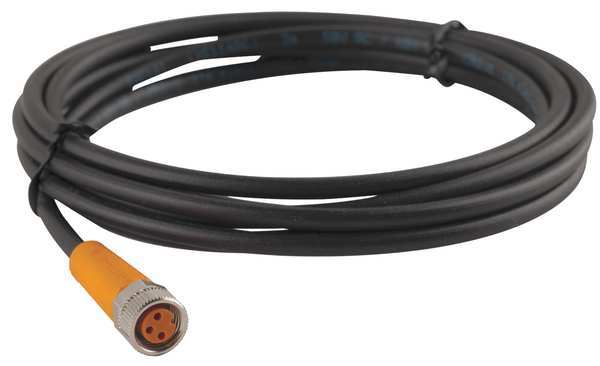

Cordset, 3 Pin, Receptacle, Female

Cordset, 3 Pin, Receptacle, Female

  • Ifm
  • Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 3, End 1 Mounting Orientation Straight, End 1 Connection Type M8, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material TPU, Max. Amps 3 A, Wire Size 22 AWG, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards cRUus Approval, End 1 Number of Keyways 1, Features Gold-Plated Contacts

    graingerSKU: 35T466, mscSKU: , zoro_no: G7530345, mongo_id: 65bbea0522d7a989a998dc40

Web Price
$22.49 / each

Product Details

-25...90
-25...90
Black
TPU
2m
Black
Connector: 1 x M8, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm
M8
M8 Female Straight X Bare Wire
Single-Ended
Poland
10 x 10 x 31
Cable: 2 m, PUR, Halogen-free, black, Ø 3.7 mm; 3 x 0.25 mm² (32 x Ø 0.1 mm )
M8
Female
Female Straight
Single
Straight
1
3
M8
Bare Wire
Bare Wire
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Harsh Industrial Environment
IP65, IP67, IP68, IP69K
Black
TPU
brass, nickel-plated
housing: TPU orange; Sealing: FKM
3A
3
50VAC/60VDC
122 Degrees F
-13 Degrees F
3
3
< 50 AC / < 60 DC
1
IP 65; IP 67; IP 68; IP 69K
III
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
cRUus Approval
-25 Degrees to 90 Degrees C
-13 Degrees F to 122 Degrees F
22 AWG
