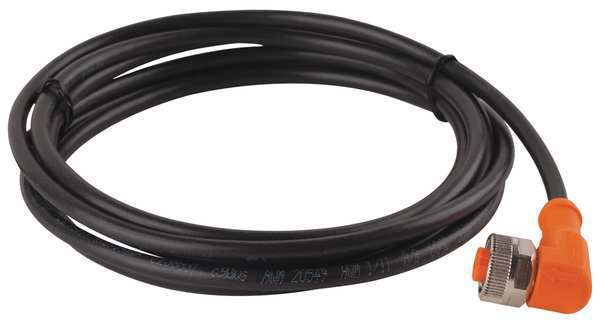

Cordset, 5 Pin, Receptacle, Female

Cordset, 5 Pin, Receptacle, Female

  • Ifm
  • Cordset, End 1 Gender Female, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Black, Cable Jacket Material TPU, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 167 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K, Standards cRUus Approval, End 1 Number of Keyways 1, Features Gold-Plated Contacts

    graingerSKU: 35T476, mscSKU: , zoro_no: G8521073, mongo_id: 65bbe58a3aaddbd5a9fccb83

Web Price
$16.49 / each

Product Details

-25...90
-25...90
Black
TPU
2m
Black
Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
M12
M12 Female Right Angle X Bare Wire
Single-Ended
Poland
26.5 x 15.5 x 36.5
Cable: 2 m, PUR, Halogen-free, black, Ø 4.3 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
M12
Female
Female Right Angle
Single
Right Angle
1
5
M12
Bare Wire
Bare Wire
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Harsh Industrial Environment
IP65, IP67, IP68, IP69K
Black
TPU
brass, nickel-plated
4A
4
250VAC/300VDC
167 Degrees F
-13 Degrees F
TPU
4
4
< 250 AC / < 300 DC
1K22/ DIN 60721-3-1
1
IP 65; IP 67; IP 68; IP 69K
II
FKM
Free from silicone; Halogen-free; Gold-plated contacts; Drag chain suitability
cRUus Approval
10...100
-25...55
-25 Degrees to 90 Degrees C
-13 Degrees F to 167 Degrees F
22 AWG
