Home / Cordset, 5 Pin, Receptacle, Female

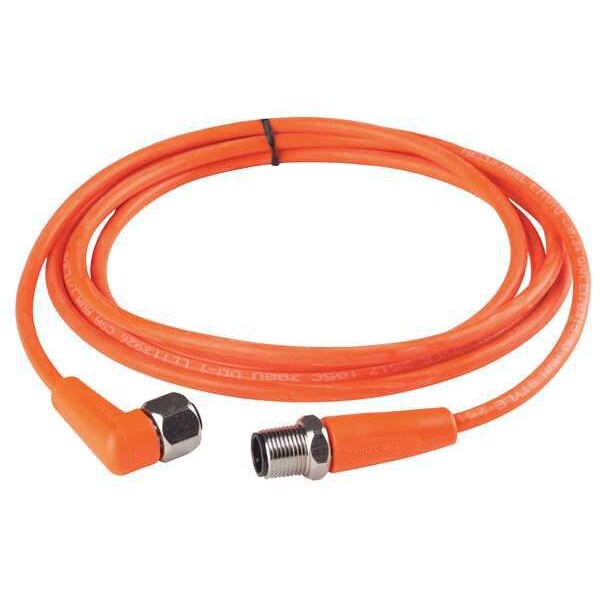

Cordset, 5 Pin, Receptacle, Female

Cordset, 5 Pin, Receptacle, Female

  • Ifm
  • Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M12, End 2 Mounting Orientation Straight, End 2 Number of Pins 4, End 2 Connection Type M12, Cable Length 2 m, Cable Jacket Color Orange, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, IP68, IP69K

    graingerSKU: 35T498, mscSKU: , zoro_no: G7144742, mongo_id: 65bbe6bf3aaddbd5a904ded7

Web Price
$31.99 / each

Product Details

5...100
-25...100
hygienic and wet areas in the food industry
Orange
PVC
2m
Orange
Cable: 2 m, PVC, orange, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )
M12
M12 Male Right Angle X M12 Female Straight
Double-Ended
Poland
Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm, Connector: 1 x M12, angled; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm
M12
Male
Female Right Angle
Single
Right Angle
1
5
M12
M12
Female
Male Straight
Single
Straight
1
4
M12
Gold Plated Contacts; Resistant To Oils And Coolants; Reliable Sealing; Robust Housing; High Shock And Vibration Resistance; Silicone Free; Halogen Free; Drag Chain Suitability
Hygienic And Wet Areas In The Food Industry
IP65, IP67, IP68, IP69K
Orange
PVC
stainless steel (1.4404 / 316L)
housing: PVC orange; Sealing: EPDM
4A
4
250VAC/300VDC
122 Degrees F
-13 Degrees F
4
4
< 250 AC / < 300 DC
1K22/ DIN 60721-3-1
1
IP 65; IP 67; IP 68; IP 69K
II
Free from silicone; Gold-plated contacts; Drag chain suitability
cRUus Approval
10...100
-25...55
-25 Degrees to 100 Degrees C
-13 Degrees F to 122 Degrees F
22 AWG
