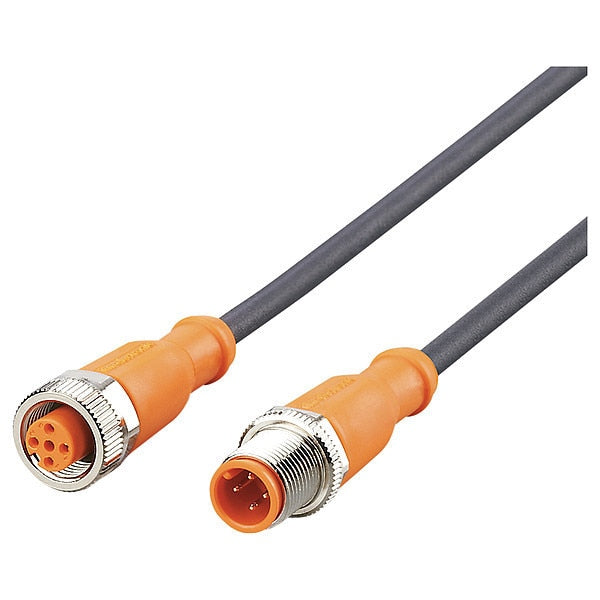

Double-Ended Cordset, 10 m L Cable

SKU
Brand Ifm
Categories
Description Double-Ended Cordset, End 1 Gender Male, End 1 Number of Pins 4, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Mounting Orientation Straight, End 2 Number of Pins 4, End 2 Connection Type M12, Cable Length 10 m, Cable Jacket Color Orange, Cable Jacket Material TPU, Max. Amps 4 A, Wire Size 0.34 mm, Maximum Operating Temperature 90 Degrees C, Minimum Operating Temperature -25 Degrees C, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, EAC, UKCA
graingerSKU: 801T69, mscSKU: , zoro_no: G607877569, mongo_id: 65bbe79a3aaddbd5a90a3f2e

Web Price

$47.86 / each

Qty

Product Details

Ambient temperature (moving) [ÃÂ°C] -25...90

Ambient temperature [ÃÂ°C] -25...90

Cable Jacket Color Orange

Cable Jacket Material TPU

Cable Length 10 m

Cable Type Round

Connection Cable: 10 m, PUR, Halogen-free, black, ÃÂ 4.3 mm; 4 x 0.34 mmÃÂ² (42 x ÃÂ 0.1 mm )

Connector Type M12

Cordset Configuration M12 Male Straight X M12 Female Straight

Cordset Type Double-Ended

Country of Origin (subject to change) Poland

Electrical connection Connector: 1 x M12, straight; coding: A; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

End 1 Connection Type M12

End 1 Gender Male

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 4

End 2 Connection Type M12

End 2 Gender Female

End 2 Mounting Orientation Straight

End 2 Number of Pins 4

Features High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism

IP Rating IP65, IP67, IP68, IP69K

Material nut brass, nickel-plated

Materials housing: TPU orange; Sealing: FKM

Max. Amps 4 A

Max. current load total [A] 4

Max. Voltage 250 V AC, 300 V DC

Maximum Operating Temperature 90 Degrees C

Minimum Operating Temperature -25 Degrees C

Number of Wires 4

Operating voltage [V] < 250 AC / < 300 DC

Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1

Package Quantity 1
