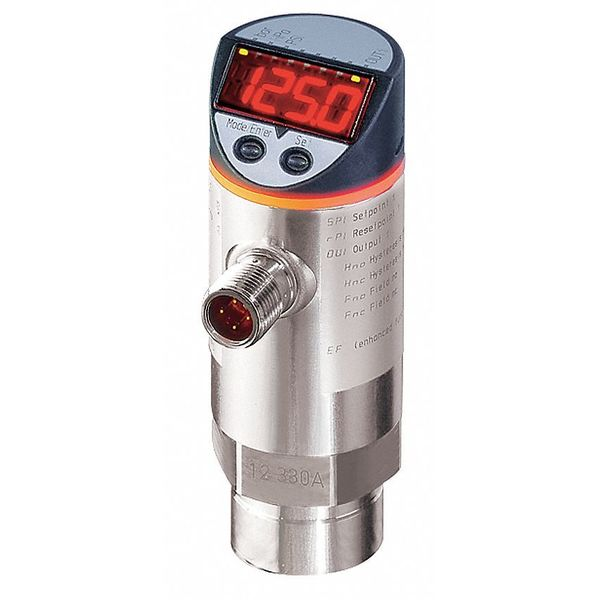

Electronic Pressure Sensor, 17,400 psi

Electronic Pressure Sensor, 17,400 psi

  • Ifm
  • Electronic Pressure Sensor, Range 0 to 3625 psi, Analog Output 4 to 20mA or 0 to 10V DC, Control Output PNP, Programmable On/Off Setting, Power Required 18 to 30V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Stainless Steel, Housing Material Stainless Steel, Operating Temp. Range -13 Degrees to 176 Degrees F, IP Rating 65/67, Max. Pressure 17,400 psi, Standards CE, CULus

    graingerSKU: 52PG35, mscSKU: , zoro_no: G5892951, mongo_id: 65bbe74d3aaddbd5a90873f2

Web Price
$569.99 / each

Product Details

-25...80
4 to 20mA or 0 to 10V DC
4...20; (scalable 1:5)
50...250 bar 725...3625 psi 5...25 MPa
0...200 bar 0...2900 psi 0...20 MPa
0...10; (scalable 1:5)
for industrial applications
<± 0,25 (BFSL) / <± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
IO-Link
Connector: 1 x M12; coding: A; Contacts: gold-plated
PNP
Germany
< 35
0...4
0...4
0...50
4 Digit LED
4 Pin M12
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-3
Stainless Steel
<± 0,1; (Turn down 1:1)
0.5 bar 5 psi 0.05 MPa, 0.1 bar 1 psi 0.01 MPa
yes
application specific tag
function bit length pressure 14 binary switching information 2, function bit length pressure 16 device status 4 binary switching information 2
0.1
1.1
65/67
<± 0,05; (Turn down 1:1; per 6 months)
1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
1.4542 (17-4 PH / 630)
500 bar 7250 psi 50 MPa
500
17,400 psi
3
2
metallic thin film cell
0...250 bar 0...3625 psi 0...25 MPa
liquids and gases
-25...80
1200 bar 17400 psi 120 MPa
1.5 bar 15 psi 0.15 MPa, 1.1 bar 15 psi 0.11 MPa
100; (500 V DC)
2000
100 million
3, 2.3
124
1
2
Number of digital outputs: 2; Number of analogue outputs: 1
Programmable
-13 Degrees to 176 Degrees F
18...30 DC; (to SELV/PELV)
normally open / normally closed; (parameterisable)
switching signal; analogue signal; IO-Link; (configurable)
yes
1
hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
250
18 to 30V DC
0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
500 bar 7250 psi 50 Mpa
1/4 in NPT
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000), Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
IP 65; IP 67
III
0 to 3625 psi
<± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
A; (when pin 2 not connected: B)
0.5...249 bar 8...3611 psi 0.05...24.9 MPa, 0.5...249 bar 10...3610 psi 0.05...24.9 MPa
< 1.5
no (can be retrofitted)
yes
IEC 61131-9
1.6...250 bar 23...3626 psi 0.16...25 MPa, 1.5...250 bar 25...3625 psi 0.15...25 MPa
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
CE, CULus
-40...100
<± 0,4; (Turn down 1:1)
< 500
0,2; (-25...80°C)
0,2; (-25...80°C)
> 50; (depends on lubrication, seal and pressure rating)
2
COM2 (38,4 kBaud)
relative pressure
pulsed
UL Approval no. J014
-1000
DIN EN 60068-2-6 20 g (10...2000 Hz)
Stainless Steel
