Home / Electronic Pressure Sensor, 2175 psi

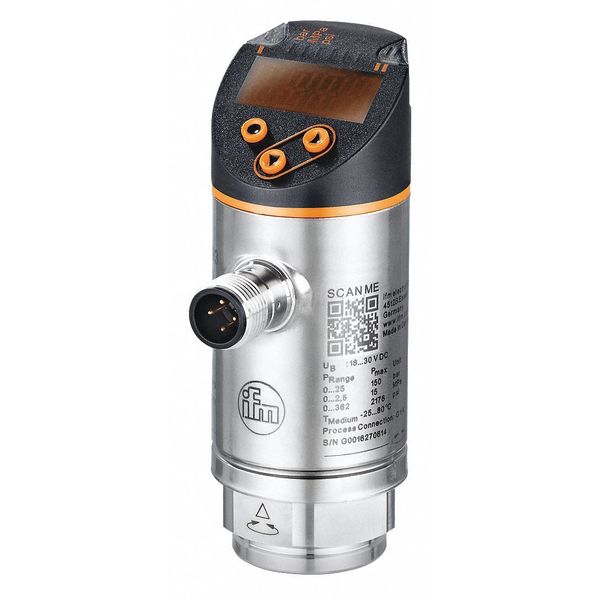

Electronic Pressure Sensor, 2175 psi

Electronic Pressure Sensor, 2175 psi

  • Ifm
  • Electronic Pressure Sensor, Range -14.6 to 145 psi, Analog Output 4 to 20mA or 0 to 10V DC, Control Output PNP, Programmable On/Off Setting, Power Required 18 to 30V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Stainless Steel, Housing Material Stainless Steel, Operating Temp. Range -13 Degrees to 176 Degrees F, IP Rating 65/67, Max. Pressure 2,175 psi, Standards CE, CULus

    graingerSKU: 52PG32, mscSKU: , zoro_no: G5892988, mongo_id: 65bbe7033aaddbd5a906aa1b

Web Price
$586.24 / each

Product Details

-25...80
4 to 20mA or 0 to 10V DC
4...20; (scalable 1:5)
1...10 bar 14.6...145 psi 0.1...1 MPa
-1...8 bar -14.6...116 psi -0.1...0.8 MPa
0...10; (scalable 1:5)
for industrial applications
<± 0,25 (BFSL) / <± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
IO-Link
Connector: 1 x M12; coding: A; Contacts: gold-plated
PNP
Germany
< 35
0...4
0...4
0...50
4 Digit LED
4 Pin M12
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-3
Stainless Steel
<± 0,1; (Turn down 1:1)
0.01 bar 0.1 psi 0.001 MPa, 0.02 bar 0.2 psi 0.002 MPa
yes
application specific tag
function bit length pressure 16 device status 4 binary switching information 2, function bit length pressure 14 binary switching information 2
0.005, 0.01
1.1
65/67
<± 0,05; (Turn down 1:1; per 6 months)
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
stainless steel (1.4404 / 316L); AI2O3 (96%; ceramics); FKM
50 bar 725 psi 5 MPa
500
2,175 psi
3
2
ceramic-capacitive pressure measuring cell
-1...10 bar -14.6...145 psi -100...1000 kPa -0.1...1 MPa
liquids and gases
-25...80
150 bar 2175 psi 15 MPa
0.06 bar 0.6 psi 0.005 MPa, 0.06 bar 0.6 psi 0.006 MPa
100; (500 V DC)
2000
100 million
2.3, 3
138
1
2
Number of digital outputs: 2; Number of analogue outputs: 1
Programmable
-13 Degrees to 176 Degrees F
18...30 DC; (to SELV/PELV)
normally open / normally closed; (parameterisable)
switching signal; analogue signal; IO-Link; (configurable)
yes
1
hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
250
18 to 30V DC
0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
75 bar 1087 psi 7.5 Mpa
1/4 in NPT
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis, Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
IP 65; IP 67
III
-14.6 to 145 psi
<± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
A; (when pin 2 not connected: B)
-0.98...9.96 bar -14.2...144.4 psi -0.098...0.996 MPa
< 1.5
no (can be retrofitted)
yes
IEC 61131-9
-0.94...10 bar -13.6...145 psi -0.094...1 MPa
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
CE, CULus
-40...100
<± 0,4; (Turn down 1:1)
< 500
<± 0,2; (-0...80°C)
<± 0,2; (-0...80°C)
> 50; (depends on lubrication, seal and pressure rating)
2
COM2 (38,4 kBaud)
relative pressure; vacuum
pulsed
UL Approval no. J012
-1000
DIN EN 60068-2-6 20 g (10...2000 Hz)
Stainless Steel
