Home / Flowmeter, 1/4" NPT DN8, 16 bar

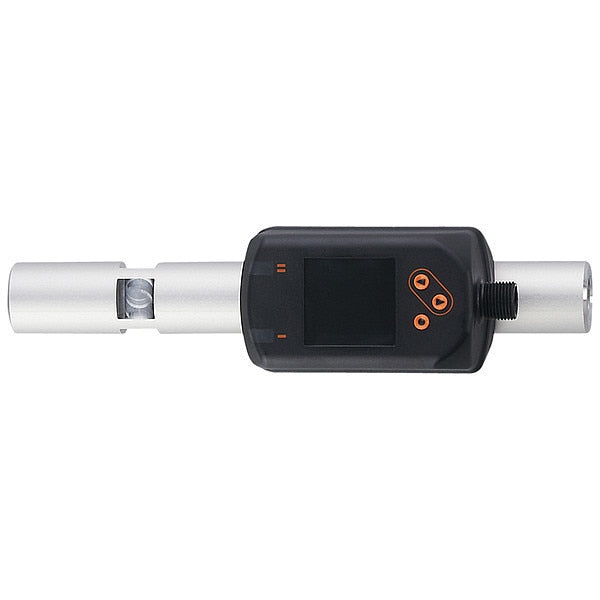

Flowmeter, 1/4" NPT DN8, 16 bar

SKU
Brand Ifm
Categories
Description Industrial Flowmeter, Compatible Gases Compressed Air, Display Type Digital/Analog, Electrical Connection Type M12 Connector, Electrical Design PNP/NPN, Flow Rate Measuring Range 0.05 to 15 cu m/h, 0.3 to 82.9 m/s, 0.8 to 250 lpm, For Gas Type Compressed Air, Housing Material 1.4301/304 Stainless Steel; 1.4305/303 Stainless Steel; 2.0401 (Brass/CW614N); FKM; Galvanized 1.5523 Steel; PBT+PC-GF30; Polybutylene Terephthalate; PPS GF40, Maximum Ambient Temperature 60 Degrees C
graingerSKU: , mscSKU: , zoro_no: G507967452, mongo_id: 65bbe97a22d7a989a9959c30

Web Price

$1,183.74 / each

Qty

Product Details

(hidden) SAG Product Builder SD5500 IFM

Analog Output 4 to 20 mA

Burst Pressure 928 psi

Compatible Gases Compressed Air

Country of Origin (subject to change) Germany

Display Type Digital/Analog

Electrical Connection (1) M12, Coding A

Electrical Connection Type M12 Connector

Electrical Design PNP/NPN

Flow Rate Measuring Range 0.05 to 15 cu m/h, 0.3 to 82.9 m/s, 0.8 to 250 lpm

For Gas Type Compressed Air

Housing Material 1.4301/304 Stainless Steel; 1.4305/303 Stainless Steel; 2.0401 (Brass/CW614N); FKM; Galvanized 1.5523 Steel; PBT+PC-GF30; Polybutylene Terephthalate; PPS GF40

Insertion Length 78.9 mm

Maximum Ambient Temperature 60 Degrees C

Maximum Pressure 16 bar

Measurement Functions Flow Rate, Medium Temperature, Pressure

Minimum Ambient Temperature 0 Degrees C

Minimum Pressure -1 bar

Number of Outputs 1 (Analog); 2 (Digital)

Operating Voltage 18 to 30V DC

Output Signal Analogue, Pulse, Switching

Output Type IO-Link; Analog; Switching; Pulse

Overall Length 182 mm

Package Quantity 1
