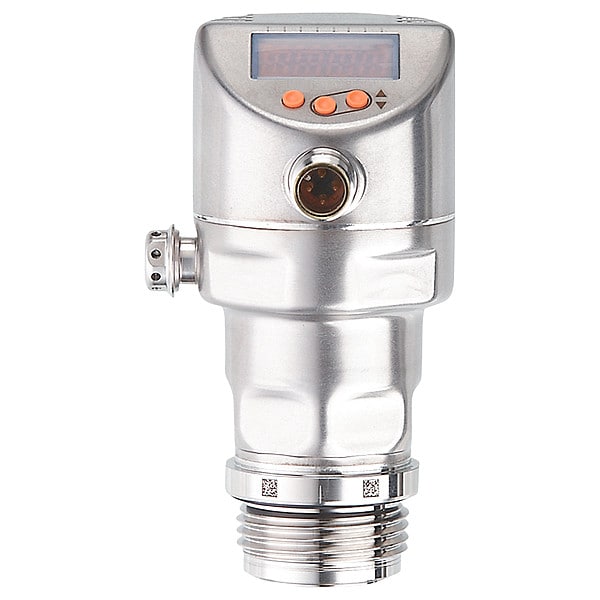

Indicating Pressure Transmitter, 375.6 g

SKU
Brand Ifm
Categories
Description Indicating Pressure Transmitter, Output 100 mA DC; 2 VDC, Process Connection Gender Male, Process Connection Size 1 in, Maximum Pressure 250 mbar, Minimum Pressure -12.4 mbar, Accuracy +/-.2, IP Rating IP67; IP68; IP69K, Number of Wires 2, 3, Display Units inH2O, kPa, mbar, mmWS, Fitting Material 316L Stainless Steel, Display Screen Type LED, Display Type Digital, Electrical Connections 4-Pin M12 Connector

Web Price

$1,249.99 / each

Qty

Product Details

(hidden) Pressure Range -12.4 mbar to 250 mbar

(hidden) product type builder PI1708 IFM

Accuracy +/-.2

Accuracy [K] ÃÂ± 2,5+ (0,08 x ( Umgebungstemperatur - Mediumtemperatur ))

Ambient temperature [ÃÂ°C] -25...80

Analogue current output [mA] 4...20, invertible; (scalable)

Analogue end point 38.2...250 mbar 15.3...100.4 inH2O 3.82...25 kPa 390...2549 mmWS

Analogue start point -12.4...199.4 mbar -5...80.1 inH2O -1.24...19.94 kPa -126...2033 mmWS

Application flush mountable for the food and beverage industry

Characteristics deviation [% of the span] <ÃÂ± 0,2; (DIN IEC EN 62828-1 incl. zero point and span error, non-linearity, hysteresis; Turn down 1:1)

Communication interface IO-Link

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Country of Origin (subject to change) Germany

Current consumption [mA] 3.5...21.5, 5...45; (430 bei max. Laststrom)

Damping for the analogue output dAA [s] 0...99.99

Damping process value dAP [s] 0...99.99

Display Display unit LED, green switching status LED, yellow function display alphanumeric display, 4-digit measured values alphanumeric display, 4-digit

Display Screen Type LED

Display Type Digital

Display unit mbar; kPa; inH2O; mmWS

Display Units inH2O, kPa, mbar, mmWS

Dynamic response T05 / T09 [s] < 35 / < 135; (DIN EN 60751 water ; > 0,9 m/s)

Electrical Connections 4-Pin M12 Connector

Electrical design PNP/NPN

EMC DIN EN 61326-1

Enclosure Rating IP67; IP68; IP69K

Factory setting SP1 =62.5 mbar rP1 = 57.5 mbar SP2 = 187.5 mbar rP2 = 182.5 mbar ASP = 0.00 mbar AEP = 250 mbar dAP = 2.00 s dAA =2.00 s

Features High Temperature Resistance and High Protection Rating, Hygienic, Flush Design, Programmable Analog and Switching Output, Resistant to High-Pressure Cleaning with Aggressive Cleaning Agents, Robust Stainless Steel Design for the Requirements of the Food and Beverage Industry

Fitting Material 316L Stainless Steel

For Use With Media Type Gases, Liquids, Suspended Particles

Housing Height 90 mm

Hysteresis deviation [% of the span] <ÃÂ± 0,15; (Turn down 1:1)

In steps of 0.1 mbar 0.1 inH2O 0.01 kPa 1 mmWS

Integrated watchdog yes

IO-Link functions (acyclical) application specific tag; internal temperature; operating hours counter; switching cycles counter; Pressure peak counter

IO-Link process data (cyclical) function bit length pressure 32 temperature 32 device status 4 binary switching information 2

IO-Link resolution pressure [mbar] 0.01

IO-Link resolution temperature [K] 0.2

IO-Link revision 1.1

IP Rating IP67; IP68; IP69K

Linearity deviation [% of the span] <ÃÂ± 0,15; (Turn down 1:1)

Long-term stability [% of the span] <ÃÂ± 0,1; (Turn down 1:1; per year)

Manufacturer Warranty Length 5 yr

Materials stainless steel (1.4404 / 316L); FKM; PTFE; PBT; PEI; PFA

Materials (wetted parts) ceramics (99.9 % Al2O3); stainless steel (1.4435 / 316L); surface characteristics: Ra < 0,4 / Rz 4; PTFE

Max. load [ÃÂ©] (Ub - 10 V) / 21,5 mA; 650 Ã¢ÂÂ¦ (Ub = 24 V), 300

Max. voltage drop switching output DC [V] 2

Maximum Operating Temperature 80 Degrees C

Maximum Pressure 250 mbar

Measuring range -25...150ÃÂ°C -13...302ÃÂ°F, -12.4...250 mbar -5...100.4 inH2O -1.24...25 kPa -126...2550 mmWS

Media viscous media and liquids with suspended particles; liquids and gases

Medium temperature [ÃÂ°C] -25...150

Min. bursting pressure 30000 mbar 12044 inH2O 3000 kPa

Min. difference between SP and rP 0.5 mbar 0.2 inH2O 0.05 kPa 5 mmWS

Min. insulation resistance [MÃÂ©] 100; (500 V DC)

Min. pressure cycles 100 million

Min. process cycle time [ms] 5.6

Min. response time of switching output (dAP) [ms] 3

Minimum Operating Temperature -25 Degrees C

Minimum Pressure -12.4 mbar

MTTF [years] 214

Number of analogue outputs 1

Number of digital outputs 2

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1

Number of Wires 2, 3

Operating voltage [V] 20...30 DC, 18...30 DC

Output 100 mA DC; 2 VDC

Output function normally open / normally closed; (parameterisable)

Output signal switching signal; analogue signal; IO-Link

Overall Height 107 mm

Overall Length 59 mm

Overall Width 64 mm

Overload protection yes

Package Quantity 1

Permanent current rating of switching output DC [mA] 100

Power Required 18 to 30 V DC (3-Wire), 20 to 30 V DC (2-Wire)

Power-on delay time [s] < 1, < 0.5

Pressure Range -12.4 mbar to 250 mbar

Pressure rating 6000 mbar 2400 inH2O 600 kPa

Pressure Units inH2O, kPa, mbar, mmWS

Process Connection 1 in BSPP

Process Connection Gender Male

Process Connection Size 1 in

Process Connection Type BSPP

Profiles Identification and Diagnosis (0x4000), Measurement Data Channel (0x800A)

Protection IP 67; IP 68; IP 69K

Protection class III

Repeatability [% of the span] <ÃÂ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)

Repeatability [K] ÃÂ± 0,2

Required master port type A

Reset point rP -12.4...249.6 mbar -5...100.2 inH2O -1.24...24.96 kPa -126...2545 mmWS

Resolution [K] 0.2

Response Time 3 msec, 7 msec, 30 msec

Reverse polarity protection yes

SDCI standard IEC 61131-9

Set point SP -12...250 mbar -4.8...100.4 inH2O -1.2...25 kPa -122...2549 mmWS

Shock resistance DIN EN 60068-2-27 50 g (11 ms)

Short-circuit protection yes

SIO mode yes

Special feature Gold-plated contacts

Standards 3A, ACS, CE, EC 1935/2004, EHEDG Certified, FCM, FDA, IO-Link, Reg31, UKCA, UL Listed

Step response time analogue output [ms] 7, 30

Storage Temperature Range -40 Degrees to 100 Degrees C

Storage temperature [ÃÂ°C] -40...100

Switch point accuracy [% of the span] <ÃÂ± 0,2; (DIN EN IEC 62828-1; Turn down 1:1)

Switching frequency DC [Hz] 125

Tightening torque [Nm] 35

Total deviation over temperature range Temperature range total deviation -25...15ÃÂ°C Characteristics deviationÃÂ± 0,1 % der Spanne / 10 K 15...80ÃÂ°C Characteristics deviation 80...150ÃÂ°C Characteristics deviationÃÂ± 0,15 % der Spanne / 10 K

Total number of outputs 2

Transmission type COM2 (38,4 kBaud)

Type of pressure relative pressure; vacuum

Type of short-circuit protection pulsed

UL approval UL Approval no. J048 File number UL E174189

Vacuum resistance [mbar] -1000

Vibration resistance DIN EN 60068-2-6 20 g (10...2000 Hz)

Weight 375.6 g

Wetted Materials 316L Stainless Steel, Ceramic, PTFE
