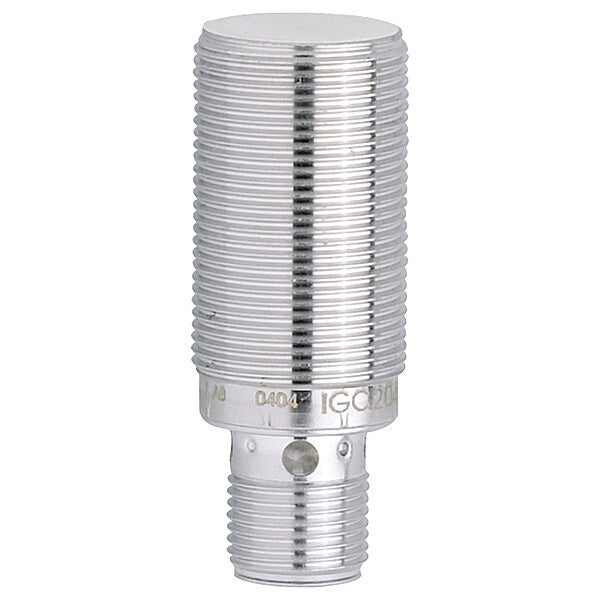

Inductive Proximity Sensor, 46 mm L

Inductive Proximity Sensor, 46 mm L

  • Ifm
  • Inductive Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 36 V DC, Proximity Sensor Operating Frequency 600 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 8 mm, Proximity Sensor Electrical Connection M12 Connector, Output Mode NO, IP Rating 68, 69, Case Material Stainless Steel, Length 46 mm, Operating Temp. Range 0 Degrees to 100 Degrees C, Description/Special Features Gold Plated Contacts, Increased Sensing Range

    graingerSKU: 801T78, mscSKU: , zoro_no: G307877579, mongo_id: 65bbe8669a749db82278c0de

Web Price
$168.74 / each
Qty

Product Details

0...100
regular cleaning processes
Stainless Steel
Connector: 1 x M12; coding: A; Contacts: gold-plated
steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3
Romania
10; (24 V)
Gold Plated Contacts, Increased Sensing Range
M18 x 1 / L = 46
switching status 4 x 90° LED, yellow
PNP
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
threaded type
1...20
(2) Lock Nuts
yes
68, 69
lock nuts: 2
46 mm
threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel
8 mm
2.5
flush mountable
1727
0...6.48
0 Degrees to 100 Degrees C
10...36 DC
normally open
NO
yes
1
100
IP 68; IP 69K; (COP)
II
Inductive
18 mm
M12 Connector
600 Hz
PNP
10 to 36 V DC
yes
8
yes
Gold-plated contacts; Increased sensing range
CE Compliance, cULus Listed, EAC, EC 1935/2004, EMC, FDA Approved, UKCA, UL Listed
600
M18 x 1
pulsed
Ta 0...40°C Enclosure type Type 1 power supply Limited Voltage/Current File number UL E174191
