Home / Inductive Proximity Sensor, 50 mm L

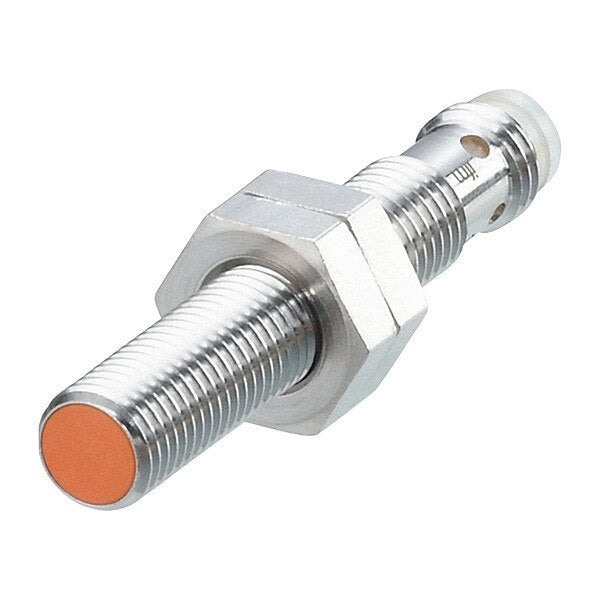

Inductive Proximity Sensor, 50 mm L

Inductive Proximity Sensor, 50 mm L

  • Ifm
  • Inductive Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30 V DC, Proximity Sensor Operating Frequency 1,300 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection M8 Connector, Output Mode NO, IP Rating 65, 67, Case Material Brass White Bronze Coated, Length 50 mm, Operating Temp. Range -25 Degrees to 70 Degrees C, Description/Special Features Increased Sensing Range

    graingerSKU: , mscSKU: , zoro_no: G107877526, mongo_id: 65bbe7033aaddbd5a906aa1d

Web Price
$149.99 / each
Qty

Product Details

-25...70
Brass White Bronze Coated
Connector: 1 x M8; coding: A
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Germany
< 10
Increased Sensing Range
M8 x 1 / L = 50
switching status 4 LED, yellow
PNP
yes
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
threaded type
1...20
(2) Lock Nuts
yes
65, 67
lock nuts: 2
50 mm
brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated
2 mm
2.5
flush mountable
1379
0...1.6
-25 Degrees to 70 Degrees C
10...30 DC
normally open
NO
yes
1
100
IP 65; IP 67; (with ifm socket duly screwed on)
III
Inductive
8 mm
M8 Connector
1,300 Hz
PNP
10 to 30 V DC
2± 10 %
yes
2
yes
Increased sensing range
CE Compliance, cULus Listed, EAC, EMC, UKCA, UL Listed
-10...10
1300
M8 x 1
A = 5 mm: 1,5 Nm; B = 2 Nm
Ta -25...70°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A017 File number UL E174191
