Home / Patch Cable, 0.3 m Cable Length

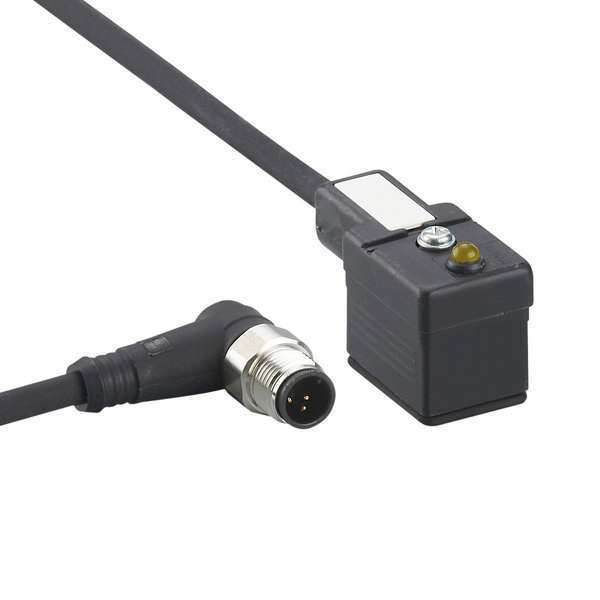

Patch Cable, 0.3 m Cable Length

SKU
Brand Ifm
Categories
Description Patch cable, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M3, End 2 Mounting Orientation Right Angle, End 2 Connection Type DIN Form B Industrial, Cable Length 2 ft, Cable Jacket Color Black, Cable Jacket Material PUR, Wire Size 4.80 mm, Maximum Operating Temperature 194 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP67, Standards CE, DIN 43650 (EN 175301-803)
graingerSKU: , mscSKU: , zoro_no: G802747476, mongo_id: 65bbe9db22d7a989a997f714

Web Price

$63.11 / each

Qty

Product Details

Ambient temperature [ÃÂ°C] -25...90

Cable Jacket Color Black

Cable Jacket Material PUR

Cable Length 2 ft

Connection Cable: 0.3 m, PUR, Halogen-free, black, ÃÂ 4.8 mm; 3 x 0.5 mmÃÂ² (16 x ÃÂ 0.2 mm )

Connector Type M12, DIN Form B

Cordset Configuration M12 Male Right Angle x DIN Form B Industrial

Country of Origin (subject to change) Poland

Dimensions [mm] 30 x 15 x 39

DIN Connector Type B/Industrial

Display operation 1 x LED, yellow

Electrical connection Connector: 1 x valve type B industrial standard, angled; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L), Connector: 1 x M12, angled; coding: A; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L)

End 1 Connection Type M12

End 1 Gender Male

End 1 Gender and Plug End Male Right Angle

End 1 Keyway Single

End 1 Mounting Orientation Right Angle

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 1 Thread M12

End 2 Connection Type DIN Form B Industrial

End 2 Gender Female

End 2 Gender and Plug End Screw Terminal

End 2 Keyway Dual

End 2 Mounting Orientation Right Angle

End 2 Number of Keyways 2

End 2 Number of Pins 0

End 2 Thread M3

Features Clearly Visible LED, Halogen-Free, High Protection Rating, Overvoltage Protection, Reliable Connection, Robust Rectangular Connector, Stainless Steel Locking

IP Rating IP67

Items supplied screw panel for labelling

Jacket Color Black

Jacket Material PUR

Material nut stainless steel (1.4404 / 316L)

Materials TPU

Max. Voltage 24 V AC, 24 V DC

Maximum Operating Temperature 194 Degrees F

Minimum Operating Temperature -13 Degrees F

Moulded-body material TPU

Operating voltage [V] < 24 AC/DC

Overvoltage protection yes; (VDR)
