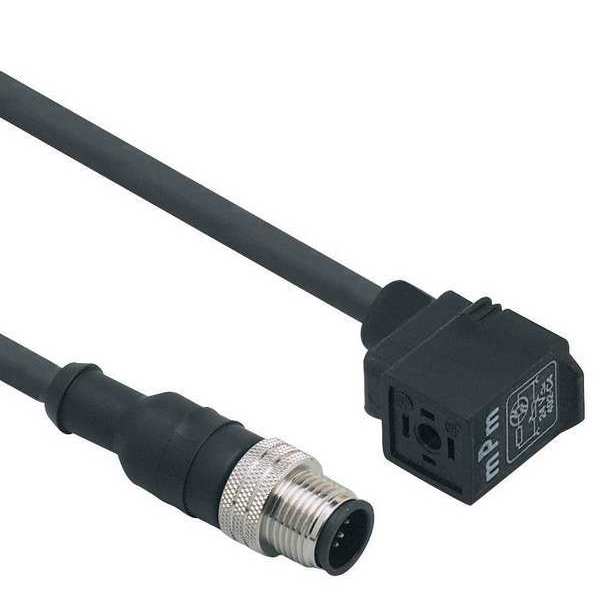

Patch Cable, 0.6 m Cable Length

SKU
Brand Ifm
Categories
Description Patch cable, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Gender Female, End 2 Thread M2.5, End 2 Mounting Orientation Right Angle, End 2 Connection Type DIN Form C, Cable Length 2 ft, Cable Jacket Color Black, Cable Jacket Material PUR, Wire Size 5.00 mm, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, Standards CE, DIN 43650 (EN 175301-803)
graingerSKU: , mscSKU: , zoro_no: G602747508, mongo_id: 65bbe5ad3aaddbd5a9fdb1e5

Web Price

$54.36 / each

Qty

Product Details

Ambient temperature [ÃÂ°C] -25...80

Cable Jacket Color Black

Cable Jacket Material PUR

Cable Length 2 ft

Connection Cable: 0.6 m, PUR, Halogen-free, black, ÃÂ 5 mm; 3 x 0.5 mmÃÂ² (42 x ÃÂ 0.1 mm )

Connector Type M12, DIN Form C

Cordset Configuration M12 Male Straight x DIN Form C

Country of Origin (subject to change) Poland

DIN Connector Type C

Display operation 1 x LED, yellow

Electrical connection Connector: 1 x M12, straight; coding: A; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.7...0.9 Nm, Connector: 1 x valve type C DIN, angled; Moulded body: PUR; Locking: brass, nickel-plated; Contacts: nickel-plated brass; Tightening torque: 0.7...0.9 Nm

End 1 Connection Type M12

End 1 Gender Male

End 1 Gender and Plug End Male Straight

End 1 Keyway Single

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 1 Thread M12

End 2 Connection Type DIN Form C

End 2 Gender Female

End 2 Gender and Plug End Screw Terminal

End 2 Keyway Dual

End 2 Mounting Orientation Right Angle

End 2 Number of Keyways 2

End 2 Number of Pins 0

End 2 Thread M2.5

Features Clearly Visible LED, Gold-Plated Contacts, Halogen-Free, High Protection Rating, Nickel-Plated Brass Locking, Overvoltage Protection, Reliable Connection, Silicone-Free, With Integrated Protective Circuitry

IP Rating IP65

Items supplied screw panel for labelling

Jacket Color Black

Jacket Material PUR

Material nut brass, nickel-plated

Materials PUR

Max. current load total [A] 3

Max. Voltage 24 V AC, 24 V DC

Maximum Operating Temperature 176 Degrees F

Minimum Operating Temperature -13 Degrees F

Moulded-body material PUR

Operating voltage [V] < 24 AC/DC
