Home / Point Level Sensor, 140 mm L

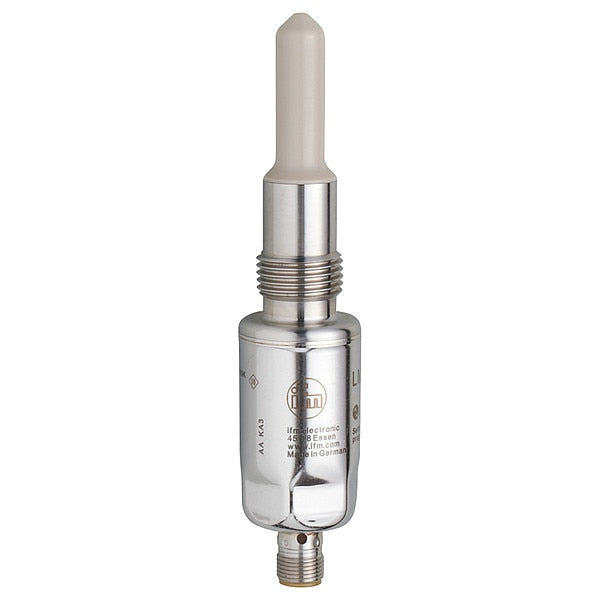

Point Level Sensor, 140 mm L

Point Level Sensor, 140 mm L

  • Ifm
  • Point Level Sensor, Product Type Point Level Sensor, Connection Size 1/2 in, For Media Type Nonhazardous Liquids, Powders, Viscous Fluids, Body Material Stainless Steel, Accuracy +/-2 mm, Range 1.5 in, Stem Length 1 1/2 in, Operating Pressure - Maximum 580 psi, Media Temperature - Maximum 100 Degrees F, Mounting Orientation Horizontal, Vertical, Enclosure Rating IP68, IP69K, Float Diameter 1/2 in, Number of Outputs - Digital 2, Float Length Not Applicable, Output Wire Configuration 4-Wire

    graingerSKU: 801T85, mscSKU: , zoro_no: G707969010, mongo_id: 65bbe5b03aaddbd5a9fdcc86

Web Price
$428.74 / each
Qty

Product Details

+/-2 mm
-20...85
Stainless Steel
IO-Link
Connector: 1 x M12; coding: A; Contacts: gold-plated
1/2 in
Germany
< 50
Ø 30 / L = 125
switching status LED, yellow operating status LED, green
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-4 : open tanks DIN EN 61000-6-3 : closed tanks
IP68, IP69K
hydrous media
1/2 in
Not Applicable
Not Applicable
Nonhazardous Liquids, Powders, Viscous Fluids
1.1
stainless steel (1.4404 / 316L); PEEK; PEI; FKM
PEEK; surface characteristics: Ra < 0,8 / Rz 4
100 Degrees C
2.5
capacitive
Liquids; viscous media; powder
100 Degrees C
100 Degrees F
-20...150; (1 h)
-20...100
2.3
Horizontal, Vertical
223
18/30V DC
2
Number of digital outputs: 2
2
40 bar
580 psi
18...30 DC
normally open / normally closed; (parameterisable)
switching signal; IO-Link
4-Wire
5.5 in
yes
1
100
38
PEEK
threaded connection G 1/2 sealing cone
1
2
Point Level Sensor
Smart Sensor: Process Data Variable; Device Identification
IP 68; IP 69K
III
1.5 in
water; hydrous media; oils; oil-based media; powder
A
< 0.5
yes
IEC 61131-9
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
3A, CA, CE, cULus, DIN EN 60068-2-27, DIN EN 60068-2-6, DIN EN 61000-6-2, DIN EN 61000-6-3, DIN EN 61000-6-4, FDA, IEC 61131-9
1 1/2 in
316 Stainless Steel, PEEK
-40...85
-1...40; (MAWP (for applications according to CRN): 40 bar / 4 MPa)
2
COM2 (38,4 kBaud)
pulsed
UL Approval no. H001
DIN EN 60068-2-6 20 g (10...2000 Hz)
