Home / Pressure Sensor, 2175 psi Burst Pressure

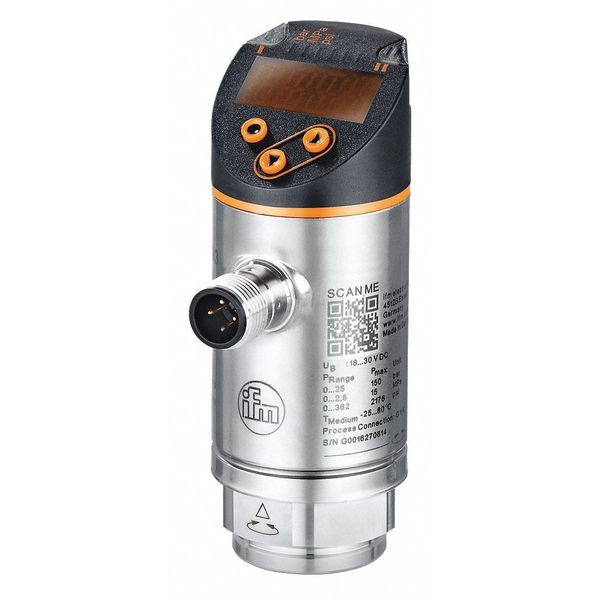

Pressure Sensor, 2175 psi Burst Pressure

Pressure Sensor, 2175 psi Burst Pressure

  • Ifm
  • Digital Pressure Sensor, Power Required 18 to 30V DC, Range -14.5 to 145 psi, Compatible With Air and Liquids, Circuit Type PNP/NPN, Output Current 150mA, 200mA @ 60 Degrees C, 250mA @ 40 Degrees C, Contact Form (2) SPST, On Set Point -13.5 to 145 psi, Off Set Point -14 to 144.5 psi, Burst Pressure 2,175 psi, Process Connection 1/4 in NPT, IP Rating 65/67, Housing Material Stainless Steel, Wetted Materials Ceramic, Fluorocarbon, Electrical Connection 4 Pin M12 Connector

    graingerSKU: 52PG23, mscSKU: , zoro_no: G5893076, mongo_id: 65bbe58a3aaddbd5a9fccb82

Web Price
$531.24 / each

Product Details

-25...80
for industrial applications
2,175 psi
<± 0,25 (BFSL) / <± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
PNP/NPN
IO-Link
Air and Liquids
Connector: 1 x M12; coding: A; Contacts: gold-plated
(2) SPST
Germany
< 35
0...50
Display unit 3 x LED, green (bar, psi, MPa) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit
4 Pin M12 Connector
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-3
Stainless Steel
<± 0,25
0.01 bar 0.1 psi 0.001 MPa, 0.05 bar 0.5 psi 0.005 MPa
yes
application specific tag
function bit length pressure 16 device status 4 binary switching information 2, function bit length pressure 14 binary switching information 2
0.005, 0.01
0.0005, 0.001
1.1
65/67
<± 0,05; (per 6 months)
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
stainless steel (1.4404 / 316L); ceramics; FKM
50
2.5
ceramic-capacitive pressure measuring cell
-1...10 bar -14.5...145 psi -100...1000 kPa -0.1...1 MPa
liquids and gases
-25...80
150 bar 2175 psi 15 MPa
0.05 bar 1 psi 0.005 MPa, 0.05 bar 0.8 psi 0.005 MPa
100; (500 V DC)
100 million
3, 2.3
260
2
Number of digital outputs: 2
-14 to 144.5 psi
-13.5 to 145 psi
18...30 DC; (to SELV/PELV)
150mA, 200mA @ 60 Degrees C, 250mA @ 40 Degrees C
normally open / normally closed; (parameterisable)
switching signal; IO-Link; (configurable)
yes
1
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
150; (200 (...60°C) 250 (...40°C))
18 to 30V DC
< 0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
75 bar 1087 psi 7.5 Mpa
1/4 in NPT
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000), Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
IP 65; IP 67
III
-14.5 to 145 psi
<± 0,1; (with temperature fluctuations < 10 K)
A; (when pin 2 not connected: B)
-0.95...9.95 bar -14...144.5 psi -0.095...0.995 MPa, -0.97...9.95 bar -14...144.3 psi -0.097...9.995 MPa
< 3
no (can be retrofitted)
yes
IEC 61131-9
-0.92...10 bar -13.3...145 psi -0.092...1 MPa, -0.9...10 bar -13.5...145 psi -0.09...1 MPa
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
-40...100
<± 0,5
< 170
-13 Degrees to 176 Degrees F
<± 0,2; (-0...80°C)
<± 0,2; (-0...80°C)
2...3 turns after hand-fastening; recommended tightening torque; depends on lubrication, seal and pressure rating
2
COM2 (38,4 kBaud)
relative pressure; vacuum
pulsed
UL Approval no. J001
DIN EN 60068-2-6 20 g (10...2000 Hz)
Ceramic, Fluorocarbon
