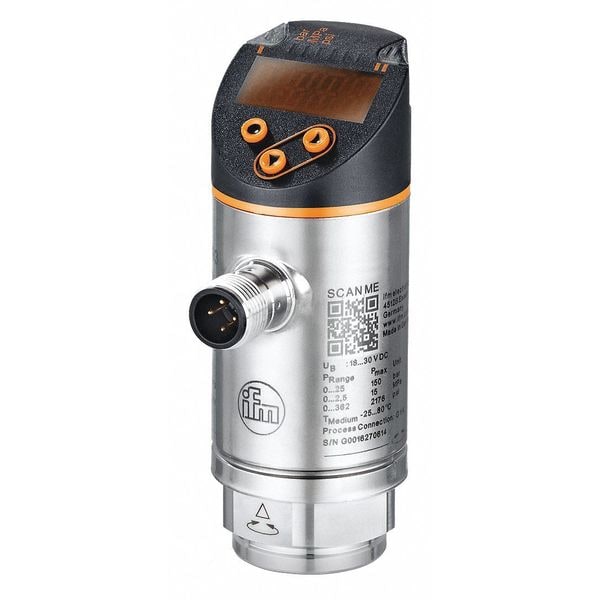

Pressure Sensor, Range 0 to 3620 psi

Pressure Sensor, Range 0 to 3620 psi

  • Ifm
  • Digital Pressure Sensor, Power Required 18 to 30V DC, Range 0 to 3620 psi, Compatible With Air and Liquids, Circuit Type PNP/NPN, Output Current 150mA, 200mA @ 60 Degrees C, 250mA @ 40 Degrees C, Contact Form (2) SPST, On Set Point 40 to 3620 psi, Off Set Point 20 to 3600 psi, Burst Pressure 15,950 psi, Process Connection 1/4 in NPT, IP Rating 65/67, Housing Material Stainless Steel, Wetted Materials Ceramic, Fluorocarbon, Electrical Connection 4 Pin M12 Connector

    graingerSKU: 52PG26, mscSKU: , zoro_no: G5893049, mongo_id: 65bbe8669a749db82278c0dd

Web Price
$483.74 / each

Product Details

-25...80
for industrial applications
15,950 psi
<± 0,25 (BFSL) / <± 0,5 (LS); (BFSL = Best Fit Straight Line; LS = limit value setting)
PNP/NPN
IO-Link
Air and Liquids
Connector: 1 x M12; coding: A; Contacts: gold-plated
(2) SPST
Germany
< 35
0...50
Display unit 3 x LED, green (bar, psi, MPa) switching status 2 x LED, yellow measured values alphanumeric display, red/green 4-digit
4 Pin M12 Connector
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-3
Stainless Steel
<± 0,25
2 bar 20 psi 0.1 MPa, 1 bar 1 psi 0.1 MPa
yes
application specific tag
function bit length pressure 14 binary switching information 2, function bit length pressure 16 device status 4 binary switching information 2
0.1, 1
0.1, 0.01
1.1
65/67
<± 0,05; (per 6 months)
1.4542 (17-4 PH / 630); stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
1.4542 (17-4 PH / 630)
500 bar 7250 psi 50 MPa
2.5
metallic thin film cell
0...250 bar 0...3620 psi 0...25 MPa
liquids and gases
-25...80
1100 bar 15950 psi 110 MPa
1 bar 20 psi 0.1 MPa, 1 bar 1 psi 0.1 MPa
100; (500 V DC)
100 million
3, 2.3
214
2
Number of digital outputs: 2
20 to 3600 psi
40 to 3620 psi
18...30 DC; (to SELV/PELV)
150mA, 200mA @ 60 Degrees C, 250mA @ 40 Degrees C
normally open / normally closed; (parameterisable)
switching signal; IO-Link; (configurable)
yes
1
hysteresis / window; normally open / normally closed; switching logic; switch-on/switch-off delay; Damping; Display unit
150; (200 (...60°C) 250 (...40°C))
18 to 30V DC
0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
500 bar 7250 psi 50 Mpa
1/4 in NPT
Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000), Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
IP 65; IP 67
III
0 to 3620 psi
<± 0,1; (with temperature fluctuations < 10 K)
A; (when pin 2 not connected: B)
1...249 bar 20...3600 psi 0.1...24.9 MPa, 1...249 bar 12...3608 psi 0.1...24.9 MPa
< 3
no (can be retrofitted)
yes
IEC 61131-9
2...250 bar 30...3626 psi 0.2...25 MPa, 2...250 bar 40...3620 psi 0.2...25 MPa
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
-40...100
<± 0,5
< 170
-13 Degrees to 176 Degrees F
0,2; (-25...80°C)
0,2; (-25...80°C)
2...3 turns after hand-fastening; recommended tightening torque; depends on lubrication, seal and pressure rating
2
COM2 (38,4 kBaud)
relative pressure
pulsed
UL Approval no. J003
DIN EN 60068-2-6 20 g (10...2000 Hz)
Ceramic, Fluorocarbon
