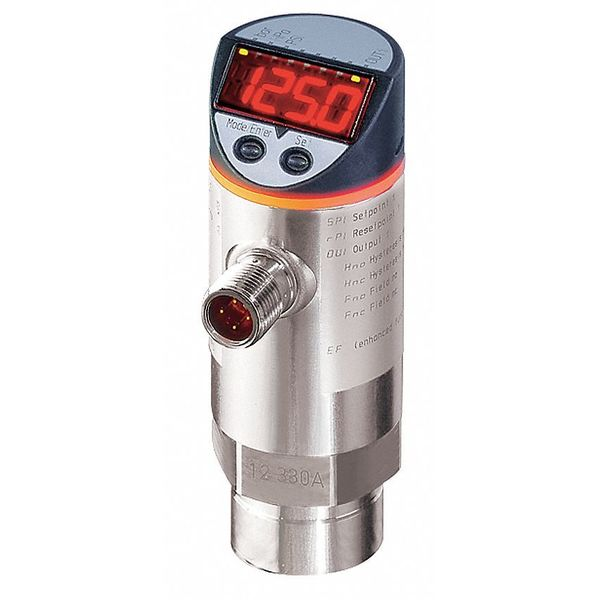

Pressure Sensor, Range -0.7 to 14.5 psi

Pressure Sensor, Range -0.7 to 14.5 psi

  • Ifm
  • Electronic Pressure Sensor, Range -0.7 to 14.5 psi, Analog Output 4 to 20mA or 0 to 10V DC, Control Output PNP, Programmable On/Off Setting, Power Required 18 to 30V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Stainless Steel, Housing Material Stainless Steel, Operating Temp. Range -13 Degrees to 176 Degrees F, IP Rating 65/67, Max. Pressure 450 psi, Standards CE, CULus

    graingerSKU: 52PG30, mscSKU: , zoro_no: G5893006, mongo_id: 65bbe7649a749db822736023

Web Price
$604.99 / each

Product Details

-25...80
4 to 20mA or 0 to 10V DC
4...20; (scalable 1:5)
150...1000 mbar 2.18...14.5 psi 60.5...401.5 inH2O 15...100 kPa
-50...800 mbar -0.72...11.6 psi -20...321 inH2O -5...80 kPa
0...10; (scalable 1:5)
for industrial applications
<± 0,25 (BFSL) / <± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)
IO-Link
Connector: 1 x M12; coding: A; Contacts: gold-plated
PNP
Germany
< 35
0...4
0...4
0...50
4 Digit LED
4 Pin M12
PNP/NPN
DIN EN 61000-6-2 DIN EN 61000-6-3
Stainless Steel
<± 0,1; (Turn down 1:1)
2 mbar 0.02 psi 0.5 inH2O 0.2 kPa, 1 mbar 0.01 psi 0.1 inH2O 0.1 kPa
yes
application specific tag
function bit length pressure 14 binary switching information 2, function bit length pressure 16 device status 4 binary switching information 2
0.5, 1
1.1
65/67
<± 0,05; (Turn down 1:1; per 6 months)
stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC
stainless steel (1.4404 / 316L); AI2O3 (96%; ceramics); FKM
10 bar 10000 mbar 145 psi 1000 kPa
500
450 psi
3
2
ceramic-capacitive pressure measuring cell
-0.05...1 bar -50...1000 mbar -0.72...14.5 psi -20.1...401.5 inH2O -5...100 kPa
liquids and gases
-25...80
30000 mbar 450 psi 3000 kPa
6 mbar 0.06 psi 2 inH2O 0.6 kPa, 5 mbar 0.06 psi 1.7 inH2O 0.5 kPa
100; (500 V DC)
2000
100 million
2.3, 3
138
1
2
Number of digital outputs: 2; Number of analogue outputs: 1
Programmable
-13 Degrees to 176 Degrees F
18...30 DC; (to SELV/PELV)
normally open / normally closed; (parameterisable)
switching signal; analogue signal; IO-Link; (configurable)
yes
1
hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output
250
18 to 30V DC
0.3
Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
10000 mbar 145 psi 1000 kPa
1/4 in NPT
Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis, Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)
IP 65; IP 67
III
-0.7 to 14.5 psi
<± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)
A; (when pin 2 not connected: B)
-48...996 mbar -0.69...14.44 psi -19.2...399.8 inH2O -4.8...99.6 kPa, -48...996 mbar -0.7...14.44 psi -19...400 inH2O -4.4...99.6 kPa
< 1.5
no (can be retrofitted)
yes
IEC 61131-9
-44...1000 mbar -0.63...14.5 psi -17.5...401.5 inH2O -4.4...100 kPa, -44...1000 mbar -0.64...14.5 psi -17.5...401.5 inH2O -4.4...100 kPa
DIN EN 60068-2-27 50 g (11 ms)
yes
yes
Gold-plated contacts
CE, CULus
-40...100
<± 0,4; (Turn down 1:1)
< 500
<± 0,2; (-0...80°C)
<± 0,2; (-0...80°C)
> 50; (depends on lubrication, seal and pressure rating)
2
COM2 (38,4 kBaud)
relative pressure
pulsed
UL Approval no. J012
-1000
DIN EN 60068-2-6 20 g (10...2000 Hz)
Stainless Steel
