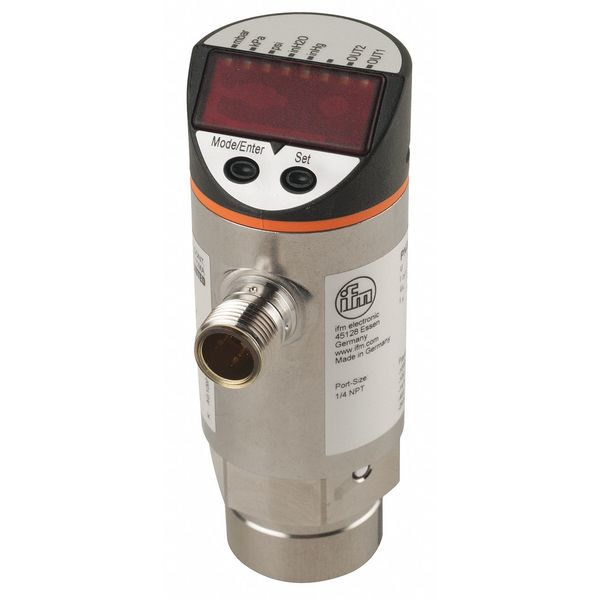

Name: Pressure Sensor, Range -14.5 to 14.5 psi
Brand: Ifm
SKU: G5893021
Price: 554.99 USD
Availability: OutOfStock

Home / Pressure Sensor, Range -14.5 to 14.5 psi

Pressure Sensor, Range -14.5 to 14.5 psi

SKU
Brand Ifm
Categories
Description Electronic Pressure Sensor, Range -14.5 to 14.5 psi, Analog Output 4 to 20mA or 0 to 10V DC, Control Output PNP, Programmable On/Off Setting, Power Required 18 to 30V DC, Process Connection 1/4 in NPT, Electrical Connection 4 Pin M12, Display 4 Digit LED, Wetted Materials Stainless Steel, Housing Material Stainless Steel, Operating Temp. Range -13 Degrees to 176 Degrees F, IP Rating 65/67, Max. Pressure 725 psi, Standards CE, CULus
graingerSKU: 52PG28, mscSKU: , zoro_no: G5893021, mongo_id: 65bbe7bf3aaddbd5a90b24ee

Web Price

$554.99 / each

Product Details

Ambient temperature [ÃÂ°C] -25...80

Analog Output 4 to 20mA or 0 to 10V DC

Analogue current output [mA] 4...20; (scalable 1:5)

Analogue end point -600...1000 mbar -8.7...14.5 psi -17.7...29.5 inHg -240...402 inH2O -60...100 kPa

Analogue start point -1000...600 mbar -14.5...8.7 psi -29.5...17.7 inHg -402...240 inH2O -100...60 kPa

Analogue voltage output [V] 0...10; (scalable 1:5)

Application for industrial applications

Characteristics deviation [% of the span] <ÃÂ± 0,25 (BFSL) / <ÃÂ± 0,5 (LS); (Turn down 1:1; BFSL = Best Fit Straight Line; LS = limit value setting)

Communication interface IO-Link

Connection Connector: 1 x M12; coding: A; Contacts: gold-plated

Control Output PNP

Country of Origin (subject to change) Germany

Current consumption [mA] < 35

Damping for the analogue output dAA [s] 0...4

Damping process value dAP [s] 0...4

Delay time programmable dS, dr [s] 0...50

Display 4 Digit LED

Electrical Connection 4 Pin M12

Electrical design PNP/NPN

EMC DIN EN 61000-6-2 DIN EN 61000-6-3

Housing Material Stainless Steel

Hysteresis deviation [% of the span] <ÃÂ± 0,1; (Turn down 1:1)

In steps of 1 mbar 0.01 psi 0.1 inHg 1 inH2O 0.1 kPa, 5 mbar 0.05 psi 0.1 inHg 2 inH2O 0.5 kPa

Integrated watchdog yes

IO-Link functions (acyclical) application specific tag

IO-Link process data (cyclical) function bit length pressure 16 device status 4 binary switching information 2, function bit length pressure 14 binary switching information 2

IO-Link resolution pressure [mbar] 1

IO-Link revision 1.1

IP Rating 65/67

Long-term stability [% of the span] <ÃÂ± 0,05; (Turn down 1:1; per 6 months)

Materials stainless steel (1.4404 / 316L); PBT+PC-GF30; PBT-GF20; PC

Materials (wetted parts) stainless steel (1.4404 / 316L); AI2O3 (96%; ceramics); FKM

MAWP (for applications according to CRN) 20 bar 20000 mbar 290 psi 2000 kPa

Max. load [ÃÂ©] 500

Max. Pressure 725 psi

Max. response time analogue output [ms] 3

Max. voltage drop switching output DC [V] 2

Measuring element ceramic-capacitive pressure measuring cell

Measuring range -1...1 bar -1000...1000 mbar -14.5...14.5 psi -29.5...29.5 inHg -402...402 inH2O -100...100 kPa

Media liquids and gases

Medium temperature [ÃÂ°C] -25...80

Min. bursting pressure 30000 mbar 450 psi 3000 kPa

Min. difference between SP and rP 10 mbar 0.15 psi 0.3 inHg 4 inH2O 1 kPa, 9 mbar 0.12 psi 0.3 inHg 4 inH2O 0.9 kPa

Min. insulation resistance [MÃÂ©] 100; (500 V DC)

Min. load resistance [ÃÂ©] 2000

Min. pressure cycles 100 million

Min. process cycle time [ms] 3, 2.3

MTTF [years] 138

Number of analogue outputs 1

Number of digital outputs 2

Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1

On/Off Setting Programmable

Operating Temp. Range -13 Degrees to 176 Degrees F

Operating voltage [V] 18...30 DC; (to SELV/PELV)

Output function normally open / normally closed; (parameterisable)

Output signal switching signal; analogue signal; IO-Link; (configurable)

Overload protection yes

Package Quantity 1

Parameter setting options hysteresis / window; normally open / normally closed; switch-on/switch-off delay; Damping; Display unit; current/voltage output

Permanent current rating of switching output DC [mA] 250

Power Required 18 to 30V DC

Power-on delay time [s] 0.3

Pressure Equipment Directive Sound engineering practice; can be used for group 2 fluids; group 1 fluids on request

Pressure rating 10000 mbar 145 psi 1000 kPa

Process Connection 1/4 in NPT

Profiles Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis, Smart Sensor ED2: Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000)

Protection IP 65; IP 67

Protection class III

Range -14.5 to 14.5 psi

Repeatability [% of the span] <ÃÂ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1)

Required master port type A; (when pin 2 not connected: B)

Reset point rP -996...992 mbar -14.44...14.38 psi -29.4...29.3 inHg -400...398 inH2O -99.6...99.2 kPa, -995...990 mbar -14.45...14.4 psi -29.4...29.3 inHg -400...398 inH2O -99.5...99 kPa

Response time [ms] < 1.5

Restrictor element integrated no (can be retrofitted)

Reverse polarity protection yes

SDCI standard IEC 61131-9

Set point SP -987...1000 mbar -14.32...14.5 psi -29.2...29.5 inHg -396...401 inH2O -98.7...100 kPa, -985...1000 mbar -14.3...14.5 psi -29.2...29.5 inHg -396...402 inH2O -98.5...100 kPa

Shock resistance DIN EN 60068-2-27 50 g (11 ms)

Short-circuit protection yes

SIO mode yes

Special feature Gold-plated contacts

Standards CE, CULus

Storage temperature [ÃÂ°C] -40...100

Switch point accuracy [% of the span] <ÃÂ± 0,4; (Turn down 1:1)

Switching frequency DC [Hz] < 500

Temperature coefficient span [% of the span / 10 K] <ÃÂ± 0,2; (-0...80ÃÂ°C)

Temperature coefficient zero point [% of the span / 10 K] <ÃÂ± 0,2; (-0...80ÃÂ°C)

Tightening torque [Nm] > 50; (depends on lubrication, seal and pressure rating)

Total number of outputs 2
