Home / Prox Sensor, Inductive, 12mm, NPN, NO

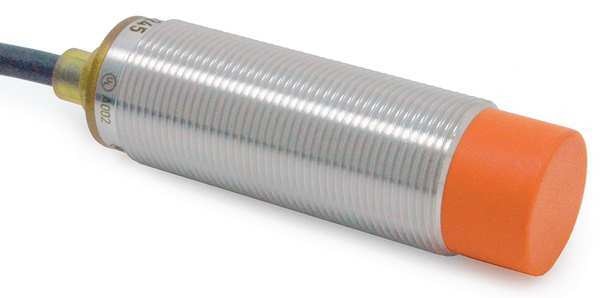

Prox Sensor, Inductive, 12mm, NPN, NO

Prox Sensor, Inductive, 12mm, NPN, NO

  • Ifm
  • Cylindrical Proximity Sensor, Inductive, 18 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 300 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 60 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA

    graingerSKU: 40KH44, mscSKU: , zoro_no: G0528057, mongo_id: 65bbee0c526e052139ae6a1f

Web Price
$41.49 / each
Qty

Product Details

-40...85
Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
Metal
Brass White Bronze Coated
Cable: 2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Germany
< 10
Overload And Short Protection
M18 x 1 / L = 60
switching status 1 x LED, yellow
NPN
yes
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles
threaded type
3...15
(2) Lock Nuts
yes
65, 66, 67, 68, 69K
lock nuts: 2
60 mm
60 mm
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
100mA
12 mm
2.5
non-flush mountable
850
0...9.72
-40 Degrees to 185 Degrees F
10...30 DC
normally open
NO
yes
1
100
IP 65; IP 66; IP 67; IP 68; IP 69K
III
Inductive
18 mm
2m Cable
300 Hz
3 Wire NPN
10 to 30V DC
Cylindrical Proximity Sensor
12± 10 %
yes
EN 60068-2-52 Kb severity level 5 (4 test cycles)
12
Unshielded
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
yes
Increased sensing range
CUL Listed
-10...10
300
M18 x 1
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A002 File number UL E174191
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
