Home / Proximity Sensor, Inductive, 4mm, PNP, NO

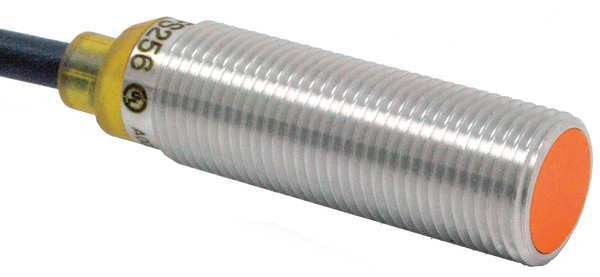

Proximity Sensor, Inductive, 4mm, PNP, NO

Proximity Sensor, Inductive, 4mm, PNP, NO

  • Ifm
  • Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Shielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating 65, 66, 67, 68, 69K, Case Material Brass White Bronze Coated, Length 40 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA

    graingerSKU: 40KH73, mscSKU: , zoro_no: G0395398, mongo_id: 65bbe6373aaddbd5a9014a6b

Web Price
$43.99 / each
Qty

Product Details

-40...85
Suitable for industrial, mobile, cooling and lubricating applications; Industrial applications / factory automation
Metal
Brass White Bronze Coated
Cable: 2 m, PUR, Ø 4 mm; burning behaviour to ECE R118 rev. 2; 3 x 0.34 mm²
EN 60068-2-27 40 g 6 ms; 4000 shocks each in every direction of the 3 coordinate axes
steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3
Germany
< 10
Overload And Short Protection
M12 x 1 / L = 40
switching status 1 x LED, yellow
PNP
yes
EN 61000-4-2 ESD 4 kV CD / 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 10 V EN 55011 class B
EN 60068-2-14 Na TA = -40°C; TB = 85°C; t1 = 30 min; t2 = < 10 s; 50 cycles
threaded type
3...15
(2) Lock Nuts
yes
65, 66, 67, 68, 69K
lock nuts: 2
40 mm
40 mm
brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
100mA
4 mm
2.5
flush mountable
861
0...3.24
-40 Degrees to 185 Degrees F
10...30 DC
normally open
NO
yes
1
100
IP 65; IP 66; IP 67; IP 68; IP 69K
III
Inductive
12 mm
2m Cable
700 Hz
3 Wire PNP
10 to 30V DC
Cylindrical Proximity Sensor
4± 10 %
yes
EN 60068-2-52 Kb severity level 5 (4 test cycles)
4
Shielded
EN 60068-2-27 Ea 100 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
yes
Increased sensing range
CUL Listed
-10...10
700
M12 x 1
Ta -25...75°C Enclosure type Type 1 power supply Limited Voltage/Current UL Approval no. A002 File number UL E174191
EN 60068-2-6 Fc 20 g (10...3000 Hz) / 50 sweep cycles, 1 octave per minute, in 3 axes
