Home / Rectngulr Proximity Sensr, Capacitv, NO/NC

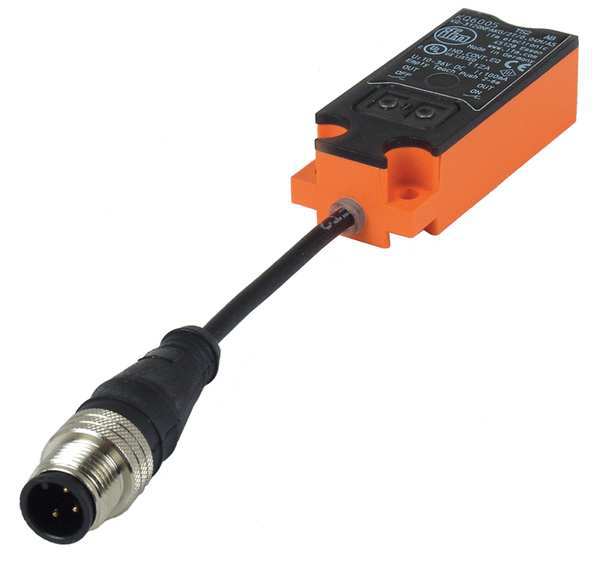

Rectngulr Proximity Sensr, Capacitv, NO/NC

Rectngulr Proximity Sensr, Capacitv, NO/NC

  • Ifm
  • Rectangular Proximity Sensor, Capacitive, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type PNP, Max. Detecting Distance 12 mm, Proximity Sensor Electrical Connection M12 Connector, Output Mode NO/NC, IP Rating 65, 67, Case Material PBT, Length 48 mm, Width 20 mm, Depth 14 mm, Operating Temp. Range -13 Degrees to 176 Degrees F, Max. Current Load 100mA

    graingerSKU: 35T528, mscSKU: , zoro_no: G7241674, mongo_id: 65bbe7033aaddbd5a906aa25

Web Price
$153.74 / each

Product Details

-25...80
Plastic
PBT
IO-Link
Cable: 0.1 m, PVC; 3 x 0.14 mm², Connector: 1 x M12; coding: A
Germany
< 17
14 mm
Short-Circuit and Overload Protection, Yellow LED Output Indication
20 x 14 x 48
switching status 1 x LED, yellow
PNP
yes
EN 61000-4-2 ESD 8 kV AD EN 61000-4-3 HF radiated 10 V/m EN 61000-4-4 Burst 2 kV EN 61000-4-6 HF conducted 3 V EN 55011 class B
rectangular
1...15
detection through non-metallic container wall or on bypass pipes
1.1
65, 67
48 mm
48 mm
housing: PBT glass fibre reinforced; pushbuttons: TPE-U; cover: PC glass fibre reinforced
100mA
12 mm
2.5
capacitive
dry bulk material; liquids
100.8
non-flush mountable
725
-13 Degrees to 176 Degrees F
10...30 DC
normally open / normally closed; (selectable)
NO/NC
yes
1
100
IP 65; IP 67; IP 69K
III
Capacitive
M12 Connector
10 Hz
PNP
10 to 30V DC
Rectangular Proximity Sensor
12± 10 %
yes
IEC 61131-9 CDV
12
Unshielded
EN 60068-2-27 30 g 6 shocks / 11 ms half-sine (x, y, z)
yes
yes
CE Compliance, cUL Listed
-20...20
10
yes
COM1 (4,8 kBaud)
pulsed
Ta -25...80°C Enclosure type Type 1 power supply Limited Voltage/Current
EN 60068-2-6 (10...55 Hz) / 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
20 mm
