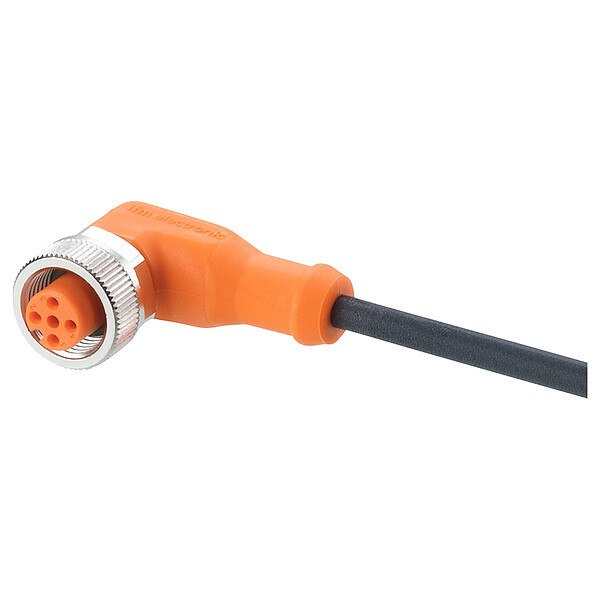

Single-Ended Cordset, 25 m L Cable

SKU
Brand Ifm
Categories
Description Single-Ended Cordset, End 1 Gender Female, End 1 Number of Pins 5, End 1 Mounting Orientation Angle, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 25 m, Cable Jacket Color Orange, Cable Jacket Material TPU, Max. Amps 4 A, Wire Size 0.34 mm, Maximum Operating Temperature 90 Degrees C, Minimum Operating Temperature -25 Degrees C, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, EAC, UKCA, Cable Type Round, End 1 Number of Keyways 1
graingerSKU: 801T67, mscSKU: , zoro_no: G607877521, mongo_id: 65bbea0522d7a989a998dc3a

Web Price

$69.36 / each

Qty

Product Details

Ambient temperature (moving) [ÃÂ°C] -25...90

Ambient temperature [ÃÂ°C] -25...90

Cable Jacket Color Orange

Cable Jacket Material TPU

Cable Length 25 m

Cable Type Round

Connection Connector: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Sealing: FKM; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Connector Type M12

Cordset Configuration M12 Female Angle X Bare Wire

Cordset Type Single-Ended

Country of Origin (subject to change) Poland

Dimensions [mm] 26.5 x 15.5 x 36.5

Electrical connection Cable: 25 m, PUR, Halogen-free, black, ÃÂ 4.3 mm; 4 x 0.34 mmÃÂ² (42 x ÃÂ 0.1 mm )

End 1 Connection Type M12

End 1 Gender Female

End 1 Mounting Orientation Angle

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 2 Connection Type Bare Wire

Features High Protection Rating for the Requirements of Harsh Industrial Environments, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Resistant to Oils and Coolants, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism

IP Rating IP65, IP67, IP68, IP69K

Material nut brass, nickel-plated

Max. Amps 4 A

Max. current load total [A] 4

Max. Voltage 250 V AC, 300 V DC

Maximum Operating Temperature 90 Degrees C

Minimum Operating Temperature -25 Degrees C

Moulded-body material TPU

Number of Wires 4

Operating voltage [V] < 250 AC / < 300 DC

Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1

Package Quantity 1
