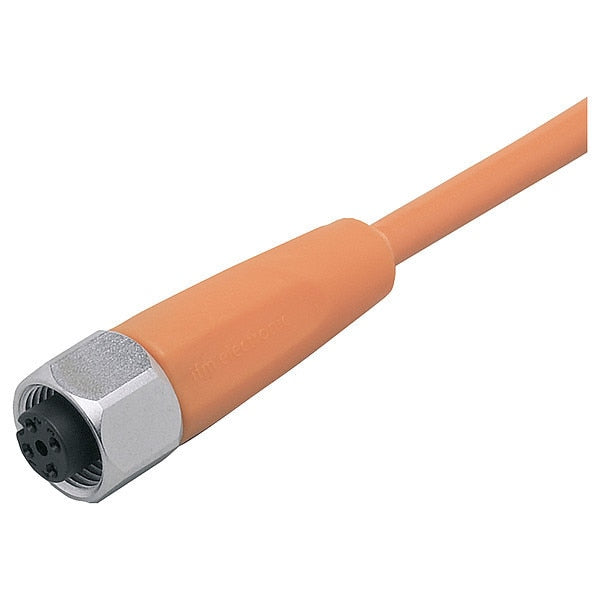

Single-Ended Cordset, 25 m L Cable

SKU
Brand Ifm
Categories
Description Single-Ended Cordset, End 1 Gender Female, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type M12, End 2 Connection Type Bare Wire, Cable Length 25 m, Cable Jacket Color Orange, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 0.34 mm, Maximum Operating Temperature 100 Degrees C, Minimum Operating Temperature -25 Degrees C, IP Rating IP65, IP67, IP68, IP69K, Standards CE, cULus, EAC, UKCA, Cable Type Round, End 1 Number of Keyways 1
graingerSKU: 801T73, mscSKU: , zoro_no: G407877585, mongo_id: 65bbe7e49a749db822760f71

Web Price

$71.11 / each

Qty

Product Details

Ambient temperature (moving) [ÃÂ°C] 5...100

Ambient temperature [ÃÂ°C] -25...100

Application hygienic and wet areas in the food industry

Cable Jacket Color Orange

Cable Jacket Material PVC

Cable Length 25 m

Cable Type Round

Connection Connector: 1 x M12, straight; coding: A; Locking: stainless steel (1.4404 / 316L); Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Connector Type M12

Cordset Configuration M12 Female Straight X Bare Wire

Cordset Type Single-Ended

Country of Origin (subject to change) Poland

Dimensions [mm] 15.5 x 15.5 x 45

Electrical connection Cable: 25 m, PVC, orange, ÃÂ 4.9 mm; 4 x 0.34 mmÃÂ² (42 x ÃÂ 0.1 mm )

End 1 Connection Type M12

End 1 Gender Female

End 1 Mounting Orientation Straight

End 1 Number of Keyways 1

End 1 Number of Pins 5

End 2 Connection Type Bare Wire

Features For use in Sanitary and Wet Areas in the Food Industry, Mechanical End Stop to Protect the O-Ring from Destruction, Permanent, Reliable Sealing Even when Mounted without Tools, Vibration and Shock Resistant Thanks to Coupling Ring with Locking Mechanism, Wide Operating Temperature Range and High Protection Rating

IP Rating IP65, IP67, IP68, IP69K

Material nut stainless steel (1.4404 / 316L)

Materials housing: PVC orange; Sealing: EPDM

Max. Amps 4 A

Max. current load total [A] 4

Max. Voltage 250 V AC, 300 V DC

Maximum Operating Temperature 100 Degrees C

Minimum Operating Temperature -25 Degrees C

Number of Wires 4

Operating voltage [V] < 250 AC / < 300 DC

Other climatic conditions for storage according to stated class 1K22/ DIN 60721-3-1

Package Quantity 1
