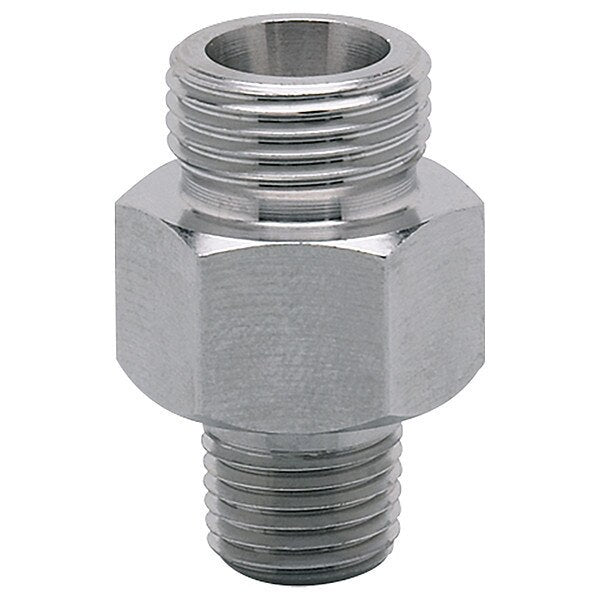

Threaded Adapter for Pressure Sensors

SKU
Brand Ifm
Categories
Description Threaded Adapter for Pressure Sensors, For Use With The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013., Fitting Material Stainless Steel, Maximum Pressure 300 bar

Web Price

$37.36 / each

Qty

Product Details

(hidden) Pressure Range 300 bar

(hidden) product type builder E40106 IFM

Adapter Process Connection 1/4 in NPT

Application for industrial applications

Country of Origin (subject to change) Germany

Fitting Material Stainless Steel

For Use With The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.

Insertion depth [mm] 13.9; (measuring probe SID, SFD, TN)

Materials stainless steel (1.4404 / 316L)

MAWP (for applications according to CRN) [bar] 303

Maximum Pressure 300 bar

Media liquids and gases

Package Quantity 1

Pressure Equipment Directive A possible classification to PED depends on the application and has to be carried out by the user / operator.

Pressure Equipment Directive EAC The adapter is intended for use in devices, machines and installations that do not fall under the categories of the technical rule TR CU 032/2013.

Pressure Range Max 300 bar

Pressure rating [bar] 300

Process connection threaded connection 1/4 NPT

Sensor Connection M18x1.5
